Time-course live imaging of maize and sorghum protoplasts
- Rachel Baschieri1,
- Thai Dao1,
- Samuel Leiboff1
- 1Oregon State University
Protocol Citation: Rachel Baschieri, Thai Dao, Samuel Leiboff 2022. Time-course live imaging of maize and sorghum protoplasts. protocols.io https://dx.doi.org/10.17504/protocols.io.4r3l27me3g1y/v1
License: This is an open access protocol distributed under the terms of the Creative Commons Attribution License,  which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited
Protocol status: Working
We use this protocol and it's working
Created: August 31, 2022
Last Modified: September 02, 2022
Protocol Integer ID: 69419
Keywords: Time-course live imaging, protoplast, maize, sorghum, plant transfection
Abstract
A protoplast is a living plant, fungal, or bacterial cell with the cell wall removed. Protoplasts offer a simplified system for studies of gene expression compared to more complex whole-plant systems and are promising for the interrogation of cellular physiology, metabolism and responses to stimuli. Performing live imaging of protoplast experiments in a time-course experiment provides more information about how these cellular processes progress over time. Protoplast time-course live imaging studies have previously explored intracellular auxin localization [1], auxin’s effect on gene expression [2], the cellular localization of a mobile transcription factor, and its dynamic response to chemical endomembrane system inhibitors [3], cell wall regeneration [4], and cell division and micro-callus formation [5].
Though time-course live imaging of protoplasts is a useful tool, it is also a skill that can be difficult to acquire. Practice and troubleshooting of various protoplast isolation, transfection, and immobilization protocols can be time-consuming and may deter many from performing experiments with protoplasts. This protocol combines protoplast isolation, transfection, and immobilization methods to form a cohesive protoplast time-course live imaging protocol with notes and modifications from our troubleshooting.
This protocol was developed for time-course live imaging of maize and sorghum protoplasts. The isolation and transfection steps are based on methods published in Meng et al. 2020 with a few modifications. First, 50mM MES was added to the PEG-calcium transfection solution to buffer the transfection solution at pH 5.7 and increase protoplast transfection efficiency . Second, 1% bovine serum albumin(BSA) was added to the incubation solution based on Ohshima et al. 1989 to increase protoplast viability after overnight incubation. Third, 50ug/mL ampicillin is added to the incubation solution to decrease bacterial growth overnight [8]. The alginate immobilization steps were adapted from Middleton et al. 2018 and Dovzhenko et al. 1998.
References
- Middleton, A. M., Dal Bosco, C., Chlap, P., Bensch, R., Harz, H., Ren, F., ... & Dovzhenko, A. (2018). Data-driven modeling of intracellular auxin fluxes indicates a dominant role of the ER in controlling nuclear auxin uptake. Cell reports, 22(11), 3044-3057.
- Maurel, C., Leblanc, N., Barbier-Brygoo, H., Perrot-Rechenmann, C., Bouvier-Durand, M., & Guern, J. (1994). Alterations of auxin perception in rolB-transformed tobacco protoplasts (time course of rolB mRNA expression and increase in auxin sensitivity reveal multiple control by auxin). Plant Physiology, 105(4), 1209-1215..
- Wu, S., & Gallagher, K. L. (2014). The movement of the non-cell-autonomous transcription factor, SHORT-ROOT relies on the endomembrane system. The Plant Journal, 80(3), 396-409.
- Kuki, H., Higaki, T., Yokoyama, R., Kuroha, T., Shinohara, N., Hasezawa, S., & Nishitani, K. (2017). Quantitative confocal imaging method for analyzing cellulose dynamics during cell wall regeneration in Arabidopsis mesophyll protoplasts. Plant Direct, 1(6), e00021.
- Xu, M., Du, Q., Tian, C., Wang, Y., & Jiao, Y. (2021). Stochastic gene expression drives mesophyll protoplast regeneration. Science Advances, 7(33), eabg8466.
- Meng, R., Wang, C., Wang, L., Liu, Y., Zhan, Q., Zheng, J., & Li, J. (2020). An efficient sorghum protoplast assay for transient gene expression and gene editing by CRISPR/Cas9. PeerJ, 8, e10077.
- Ohshima, M., & Toyama, S. (1989). Studies on Culture of Cells and Tissues of Crop Plants: I. Survey on enzymatic isolation and culture of rice leaf sheath protoplasts. Japanese Journal of Crop Science, 58(1), 103-110.
- Yoo, S. D., Cho, Y. H., & Sheen, J. (2007). Arabidopsis mesophyll protoplasts: a versatile cell system for transient gene expression analysis. Nature protocols, 2(7), 1565-1572.
- Dovzhenko, A., Bergen, U., & Koop, H. U. (1998). Thin-alginate-layer technique for protoplast culture of tobacco leaf protoplasts: shoot formation in less than two weeks. Protoplasma, 204(1), 114-118.
Materials
Enzyme solution - pH 5.7
- 10mM KCL
- 8mM MES
- 1mM CaCl2
- 0.5M mannitol
- 0.6% cellulase
- 0.1% pectolyase (macroenzyme)
- 0.1% BSA
- 0.1% polyvinylpyrrolidone K30
| A | B | |
| Stock | Amount for 10mL | |
| 0.1M KCL | 1 mL | |
| 0.1M MES | 800 uL | |
| 1M CaCl2 | 10 uL | |
| 1M mannitol | 5 mL | |
| Sterile ddH20 | 3.19 mL | |
| Cellulase RS | 0.06 g | |
| Macroenzyme R-10 | 0.01 g | |
| BSA | 0.01 g | |
| Polyvinylpyrrolidone K30 | 0.01 g |
Filter sterilize Enzyme solution
W5 solution - pH 5.7
- 154 mM NaCl
- 125 mM CaCl2
- 5 mM KCl
- 2 mM MES
| A | B | C | D | |
| Stock | 15mL | 20 mL | 30 mL | |
| NaCl | 0.1349964 g | 0.1799952 g | 0.2699928 g | |
| 1M CaCl2 | 1.875 mL | 2.5 mL | 3.75 mL | |
| 0.1M KCl | 750 uL | 1 mL | 1.5 mL | |
| 0.1M MES | 300 uL | 400 uL | 600 uL | |
| Sterile ddH2O | 12.075 mL | 16.1 mL | 24.15 mL |
Filter sterilize W5 solution
Suspension solution - pH 5.7
- 0.4M mannitol
- 20 mM CaCl2
- 5 mM MES
| A | B | C | D | |
| Stock | 1 mL | 5 mL | 15mL | |
| 1M mannitol | 400 uL | 2,000 uL | 6 mL | |
| 1M CaCl2 | 20 uL | 100 uL | 300 uL | |
| 0.1M MES | 50 uL | 250 uL | 750 uL | |
| Sterile ddH2O | 530 uL | 2,650 uL | 7,950 uL |
Filter sterilize Suspension solution
PEG solution - pH 5.7
- 40% PEG 4000
- 0.1M CaCl2
- 0.4M mannitol, pH 5.7
- 50mM MES
| A | B | C | |
| Stock | 1 mL | 3 mL | |
| 0.1M MES | 500 uL | 1,500 uL | |
| 1M CaCl2 | 100 uL | 300 uL | |
| 1M mannitol | 400 uL | 1200 uL | |
| PEG4000 | 0.4g | 1.2g |
Filter sterilize PEG solution
Incubation solution. - pH 5.7
- 0.5M mannitol
- 4 mM KCl
- 4 mM MES
- 1% BSA
- 50ug/ml Ampicillin
| A | B | C | D | E | |
| Stock | 3mL | 6mL | 10 mL | 15 mL | |
| 1M mannitol | 1.5 mL | 3 mL | 5 mL | 7.5 mL | |
| 0.1M KCL | 120 uL | 240 uL | 400 uL | 600 uL | |
| 0.1M MES | 120 uL | 240 uL | 400 uL | 600 uL | |
| Sterile ddH2O | 1.26 mL | 2.52 mL | 4.2 mL | 6.3 mL | |
| BSA | 0.03g | 0.06 g | 0.1 g | 0.15g | |
| Ampicillin 100mg/ml | 1.5ul | 3ul | 5ul | 7.5ul |
Filter sterilize Incubation solution
MMM pH-5.7
| A | B | |
| Reagent | Amount to make 100mL | |
| MgCl2 Hexahydrate | 102mg | |
| MgSO4 Heptahydrate | 125mg | |
| Mannitol | 8.5g | |
| MES | 195.2mg |
Autoclave MMM solution
Alg-A pH -5.7
| A | B | |
| Reagent | Amount to make 100mL | |
| MgCl2 Hexahydrate | 102mg | |
| MgSO4 Heptahydrate | 125mg | |
| Mannitol | 8.5g | |
| MES | 195.2mg | |
| Alginic acid | 1.2g |
Filter sterilize Alg-A solution
2M NH4-Succinate
| A | B | |
| Reagent | Amount to make 200mL | |
| NH4Cl | 21.2g | |
| KOH | 44.8g | |
| Succinic acid | 47.2g |
Filter sterilize 2M NH4-Succinate
FPCN pH-5.7
| A | B | |
| Reagent | Amount to make 50mL | |
| KNO3 | 0.0506g | |
| CaCl dihydrate | 0.032g | |
| MgSO4 Heptahydrate | 0.0185g | |
| KH2PO4 | 0.0085g | |
| MS | 0.220255g | |
| NH4-succinate | 500uL | |
| Inositol | 0.01g | |
| Sucrose | 1g | |
| Glucose | 4g | |
| MES | 0.0976g | |
| 10mM Biotin | 0.2uL | |
| 100mM Thiamine-HCl | 1.5uL | |
| 100mM Nicotinic Acid | 8uL |
Filter sterilize FPCN solution
Day 1 - Protoplast Isolation and Transfection
Day 1 - Protoplast Isolation and Transfection
Prepare enzyme solution.
Harvest 10-14 day old seedlings and submerge in 5% bleach 1% Tween solution for 1min., remove and rinse seedlings thoroughly in autoclaved tap water 6x. Pat seedlings dry with autoclaved Kimwipes.
Fill a glass petri dish with the filter sterilized enzyme solution, and set aside.
Cut green leaf tissue from seedlings into ~1mm strips with a fresh razor blade and immediately transfer to glass petri dish pre-filled with filter sterilized enzyme solution.
Thinly sliced sorghum leaf tissue.
Maize B73 and sorghum BTX623 leaf tissue in enzyme solution.
Incubate 4h in dark at RT w/ 40 rpm shaking.
Prepare W5 solution, suspension solution, PEG solution, and incubation solution.
Add 10mL W5 solution (or volume of W5 equal to the amount of enzyme solution). Gently swirl to mix, and shake additional 1h at 80 rpm.
Filter the W5 and enzyme solution mixture through 100 or 70um nylon mesh into 50 mL tube.
Centrifuge @ 1000-1200 rpm 5 min to collect protoplasts to the bottom of the 50mL tube.
Use a pipette to remove the supernatant and resuspend the protoplast pellet in 600 uL of suspension solution if working on sorghum, 1ml of suspension solution if working on maize.
Use 9ul of resuspended protoplasts to count with a hemocytometer to determine the concentration of resuspended protoplasts.

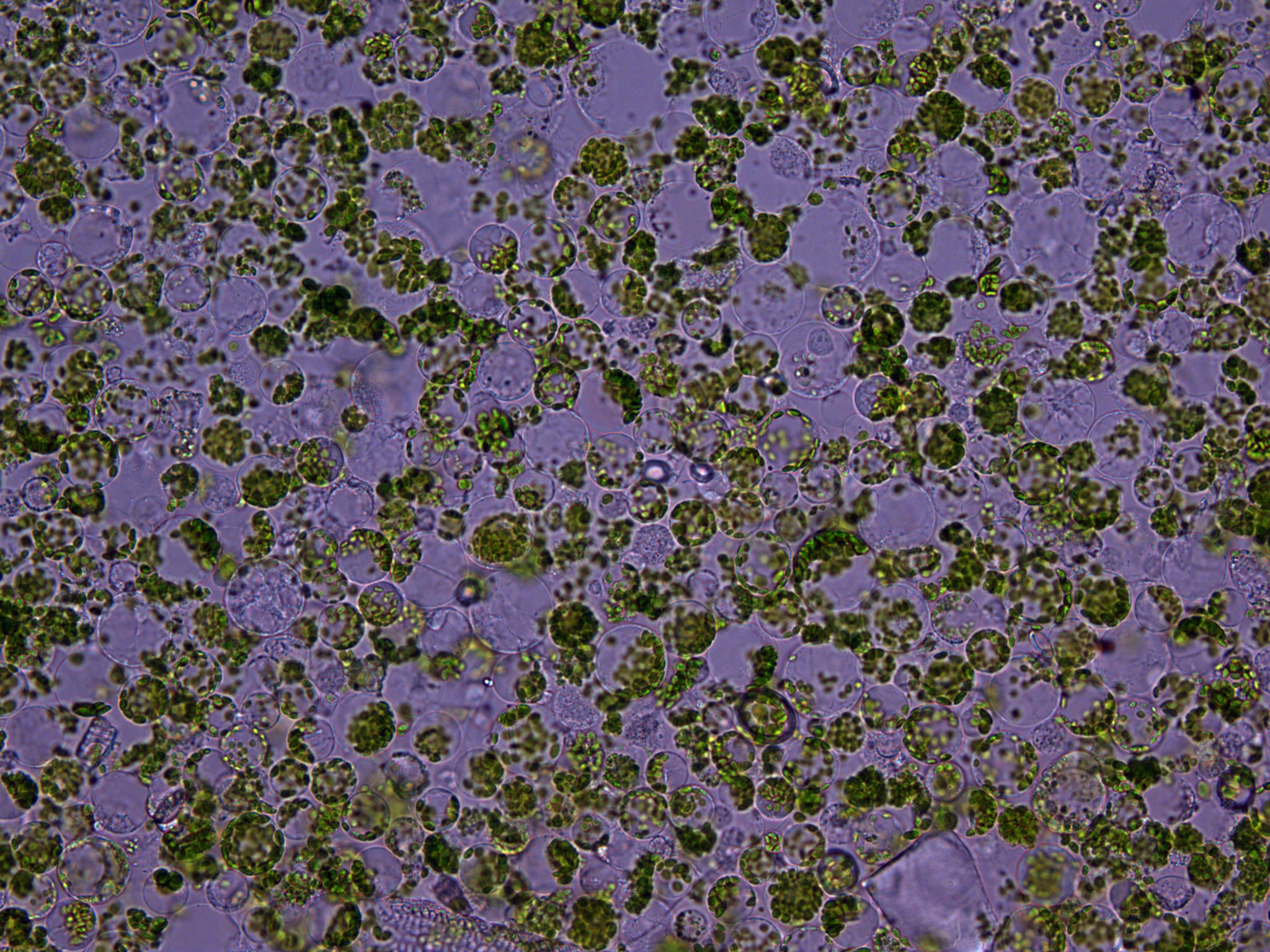

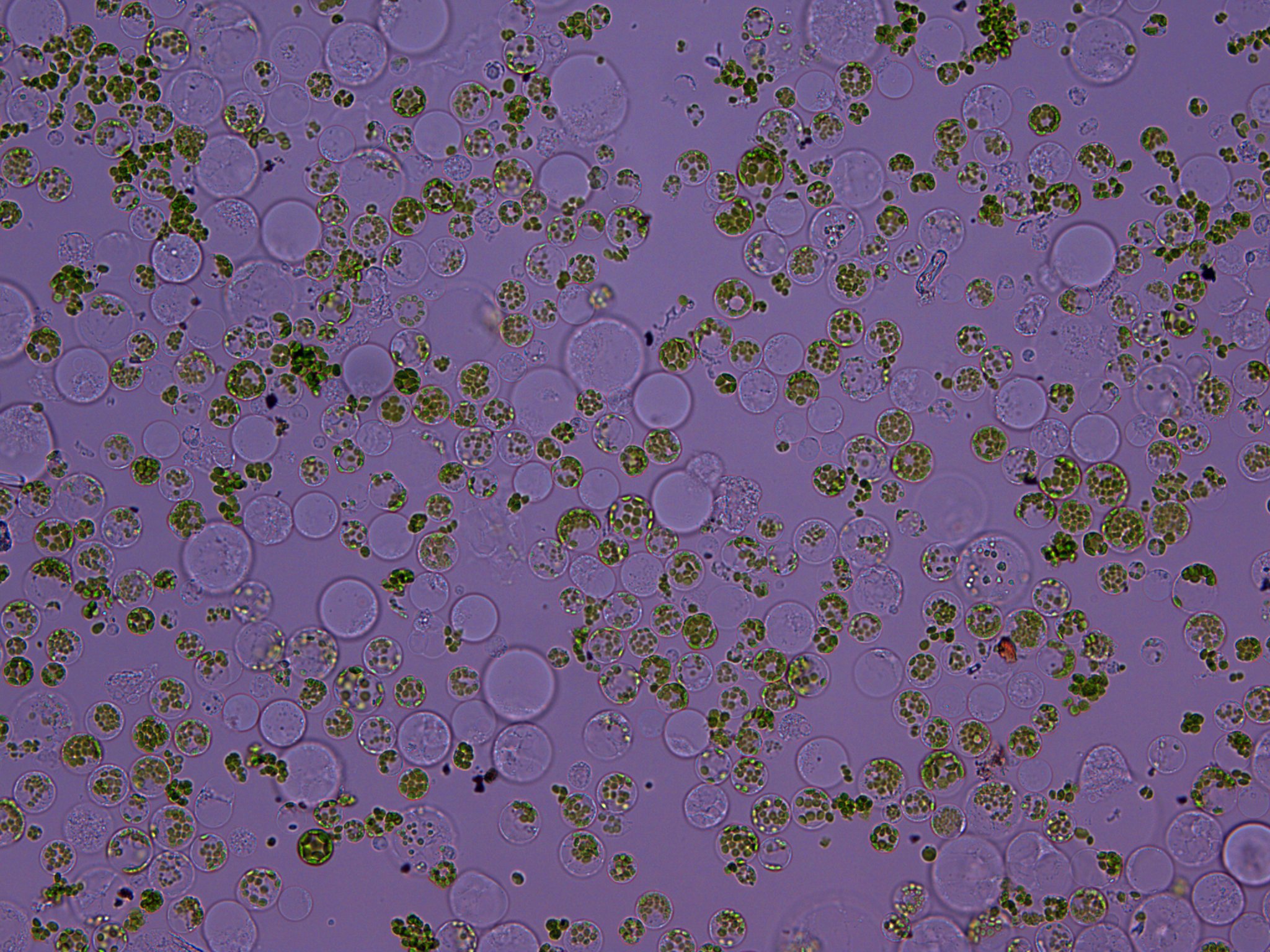

B73_7_for_protocol.jpg BTX623_4_for_protocol.jpg
BTX623_4_for_protocol.jpg Fluorescein Diacetate (FDA) viability stain18 steps
FDA stain to check viability of protoplasts:
- 81.2uL 1M mannitol
- 43.6uL diH20
- 2.5uL FDA
Mix 10uL protoplast suspension with 5uL FDA stain, incubate RT 2min., load on hemocytometer
Sorghum BTX623 protoplasts FDA stained
Add more suspension solution to reduce protoplast concentration to ~2-4 x 105 cells/mL for transfection.
In a 1.5mL tube add 20-40ug plasmid DNA and 200uL of protoplast suspension, let sit RT 5 min.
Add 220uL PEG solution and mix immediately by gentle tube inversion, incubate 15 min. @ 28C.
Quickly add 800 uL W5 solution to dilute the PEG, gently invert the tube 2x.
Collect the protoplasts by centrifuge 3min. @ 1000rpm, remove PEG and W5 supernatant.
Suspend collected protoplasts in 1mL incubation buffer and incubate in the dark @ 28C overnight with gentle ~20rpm shaking. 1.5mL tubes should be laid on their side for overnight incubation.
Ensure MMM, Alg-A, and FPCN solutions are prepared for Day 2. The MMM and Alg-A solutions may be stored at 4C for 6 months or longer, FPCN may be stored at 20C for 6 months or longer.
Day 2- Protoplast Immobilization in well-plate
Day 2- Protoplast Immobilization in well-plate
In a sterile hood, coat the bottom surface of the slide-well the protoplasts will be sitting in with 50ug/mL Poly-L-lysine, allow to sit for 30min-1hour, remove the poly-L-lysine, and allow the well-plate to air-dry.
Centrifuge transformed protoplasts after overnight incubation @ 1000rpm for 3minutes.
Remove the incubation buffer supernatant, resuspend the protoplast pellet in 100uL MMM and 100uL Alg-A solution. Mix by gently flicking the 1.5mL tube.
Pipette a large droplet of the protoplast solution onto Poly-L-lysine coated slide well (we use 8 well chamber, 50uL protoplast droplet in each well)
Allow the alginate droplet to sit for 10-15 minutes at RT for the protoplasts to settle to the surface of the glass slide.
Gently pipette 0.5-1uL droplets of W5 solution to the surface of the protoplast-alginate droplet so that the entire surface of the droplet gets coated in W5, but the protoplasts settled against the glass remain undisturbed as possible.
First solidify the outer edges of the protoplast-alginate droplet with microdroplets of W5, then work inward.
Allow the W5 coated protoplast-alginate droplet to sit 15 minutes RT.
Pipette the equivalent volume of W5 as the volume of the protoplast-alginate droplet into the slide well containing the droplet (50uL W5: 50uL protoplast-alginate) and allow it to incubate for 45 minutes. Note: while pipetting, depress the W5 into the well very slowly and gently.
Remove W5 and incubate the droplet in FPCN (350uL FPCN if protoplast droplet is 50uL) for 15 minutes. This is wash 1.
Remove FPCN and replace with another addition of fresh FPCN, incubate 15 minutes. This is wash 2.
Remove FPCN and incubate with the final FPCN or treatment solution. The alginate-embedded protoplasts are ready to be imaged.
Maize and sorghum solid protoplast-alginate droplets in FPCN solution on 8 well slide.
24hour time-course of maize protoplasts transformed with a fluorescent construct.
