Abstract
The goal of this sequential experiment was to test tool performance of Late Middle Palaeolithic Keilmesser by examining two relevant characteristics concerning their edge design: the raw material and the edge angle.
To do so, a controlled, mechanical setup was used. The samples and the contact material were standardised to limit the number of confounding factors. As tasks, unidirectional cutting and carving movements were performed. The edge angle values for the experimental standard samples were chosen to reflect the calculated edge angles from the analysed Keilmesser.

Protocol materials
ReagentTechnovit Provil Light regularKulzer GmbHCatalog #66009333
Step 6
ReagentPlurafac LF 901BTC Europe GmbH, Rheinpromenade 1, D-40789 MonheimCatalog #-
Step 2.8
ReagentModified bone-like polyurethaneSYNBONE®Catalog #PR0114
Step 3
ReagentIsopropanol 70% Carl RothCatalog #CN09.4
Step 6
ReagentAcetone ≥99.5 %Carl RothCatalog #5025.6
Step 6
Documentation of the archaeological tools
Documentation of the archaeological tools
The research question behind this here presented experiment is based on archaeological artefacts, so-called Keilmesser from the Late Middle Palaeoltihic. The artefacts are from the sites of Balver Höhle, the Upper site of Buhlen (both Germany) and Grotte de Ramioul (Belgium). For more information about the sites see the following (exemplary) references:
CITATION
K. Günther (1964). Die altsteinzeitlichen Funde der Balver Höhle, Münster.

CITATION
O. Jöris (2001). Der spätmittelpaläolithische Fundplatz Buhlen (Grabungen 1966-69): Stratigraphie, Steinartefakte und Fauna des oberen Fundplatzes. Universitätsforschungen zur prähistorischen Archäologie 73, Bonn.

CITATION
M. Ulrix-Closset (1979). Le paleolithique moyen dans le bassin mosan en Belgique, Liege.

3D scanning

In total Amount175 N Keilmesser were analysed and scanned with an AICON smartScan-HE R8 from the manufacturer Hexagon (software version OptoCat 2018R1). The S-150 FOV (field of view) used has a point-to-point distance of 33 µm.
Equipment
smartScan-HE R8
NAME
3D structured light scanner
TYPE
AICON
BRAND
-
SKU
https://www.hexagonmi.com/products/structured-light-scanners/aicon-smartscan
LINK
S-150 FOV, resolution of 33 µm
SPECIFICATIONS

Software
OptoCat
NAME
Hexagon Manufacturing Intelligence Software
DEVELOPER

The scanning settings are identical to the following protocol, and details can be found there:


Protocol
Enhancing lithic analysis: Introducing 3D-EdgeAngle as a semi-automated 3D digital method to systematically quantify stone tool edge angle and design
NAME
Enhancing lithic analysis: Introducing 3D-EdgeAngle as a semi-automated 3D digital method to systematically quantify stone tool edge angle and design
CREATED BY
Lisa Schunk

The editing steps to create a closed 3D model are also the same as in the protocol mentioned above and were executed with GOM inspect, a free software for 3D measurement data.
Software
GOM Inspect
NAME
Hotfix 2, Rev. 111729, build 2018-08-22
OS
GOM
DEVELOPER

Edge angle calculation

The edge angle measurements on the 3D models of the Keilmesser were taken with 3D-EdgeAngle. For details about the method see (publication of the forthcoming paper):

Protocol
Enhancing lithic analysis: Introducing 3D-EdgeAngle as a semi-automated 3D digital method to systematically quantify stone tool edge angle and design
NAME
Enhancing lithic analysis: Introducing 3D-EdgeAngle as a semi-automated 3D digital method to systematically quantify stone tool edge angle and design
CREATED BY
Lisa Schunk

For calculating the edge angles, the following parameters were applied:

  • "2-lines" measuring procedure
  • the length of the line was defined with 2 mm
  • 10 mm as distance to the intersection
  • only sections two to eight were used

Mean values were calculated in R, a free software and programming language for statistical computing and graphics.
Software
R Studio Desktop
NAME
The R Studio, Inc.
DEVELOPER

See "analysis_EA_Keilmesser" within the following repository on GitHub:
https://github.com/lschunk/PastHuman_StoneToolPerformance.git

Or in open access on Zenodo:
https://doi.org/10.5281/zenodo.7564605

Sample preparation
Sample preparation
Standardised tools
24 experimental standard samples were produced for the experiment:

6 x Amount35 ° Baltic flint sample
6 x Amount35 ° silicified schist sample
6 x Amount45 ° Baltic flint sample
6 x Amount45 ° silicified schist sample

Raw material

Baltic flint:
Southern Sweden (secondary deposit):
Geosciences55.945852 N, 12.767851 E

Silicified schist:
Balver Höhle
Geosciences51.339167 N, 7.871944 E
Buhlen
Geosciences51.191022 N, 9.086585 E


Note
In this experimental context, silicified schist is termed lydite. The experimental samples are labeled LYDITx-x (lydite in German = Lydit). Experimental flint samples are labeled FLTx-x. The first number identifies the nodule and the second number identifies the blade cut from the nodule.

Blanks

Raw material nodules/ blocks (step #2.1) were first cut into rectangular cuboids (blanks) of the following dimensions:

Amount10 mm thickness
Amount25 mm width
Amount60 mm minimum length

Equipment
Goliath 450
NAME
Lapidary rock saw
TYPE
Steinschleifmaschinen & Lapidary tools Ltd.
BRAND
-
SKU
https://www.steinschleifmaschinen.at/index.php?main_page=product_info&cPath=1_17&products_id=184
LINK
-
SPECIFICATIONS

a) cut Amount10 mm slices

Cutting slice (here: flint).
Cutting slice, with safety cover lifted for photo (here: flint).
Cut to provide level surface, photo with safety cover lifted (here: flint).
Slice, side view (here: flint).
Slice, top view (here: flint).
b) cut slices into blanks

Blank, top view (here: flint).
Blank, lateral view (here: flint).
Hardness measurement

The hardness of the blanks (step #2.2) was measured with a Leeb rebound hardness tester.

Equipment
Equotip 550
NAME
Portable hardness tester
TYPE
Proceq
BRAND
-
SKU
https://www.proceq.com/products/list/Category/equotip-portable-hardness-testing/
LINK
Leeb C probe
SPECIFICATIONS
The blanks were placed on a stable base of sufficient mass (here a polished granite slab of about Amount20 kg ). Since the samples did not fulfill the requirements for minimum sample size and weight, coupling paste was used between the sample and the base. Each blank was measured ten times to insure and test intra-blank variability.

Setup for measuring Leeb rebound hardness with the devices/components labeled.
Measuring Leeb rebound hardness.
Edge angle

One end of the blanks (step #2.2) was cut to produce samples with a Amount35 ° / Amount45 ° edge angle , with the following dimensions:

Amount10 mm thickness
Amount25 mm width
Amount30 mm minimum length

Equipment
310 CP
NAME
Diamond band saw
TYPE
Exact
BRAND
-
SKU
https://www.exakt.de/en/products/thin-section/industry.html
LINK


Cutting the edge angle.
Positioning blank, close-up (here: flint).
Cutting the edge angle, close-up (here: flint).
Experimental standard sample without chamfered edge, view of side A (corresponding to the "dorsal" side of bifacial lithic artefact; here: flint).
Experimental standard sample without chamfered edge, view of side D (corresponding to the "lateral" side of bifacial lithic artefact; here: flint).
Chamfered edge

To avoid catastrophic breakage of the edge during experiments, the leading edge of the experimental standard samples (step #2.4) was chamfered to a Amount45 ° angle (see #2.6 for photos).
Equipment
310 CP
NAME
Diamond band saw
TYPE
Exact
BRAND
-
SKU
https://www.exakt.de/en/products/thin-section/industry.html
LINK
Cutting chamfered edge (here: flint).
The cut with the band saw left a small burr between the two adjacent surfaces at the edge of the chamfered surface and the lateral side D. This burr was manually removed with a diamond drill bit in a mini drill.
Coordinate system

Three ceramic beads were adhered onto each side of the cutting edge to provide a coordinate system on each side.

Final experimental standard sample with beads, view of side A (corresponding to the "dorsal" side of bifacial lithic artefact; here: flint).
Final experimental standard sample with beads, view of side C (corresponding to the "ventral" side of bifacial lithic artefact; here: flint).
For details, see:
CITATION
Calandra I, Schunk L, Rodriguez A, Gneisinger W, Pedergnana A, Paixao E, Pereira T, Iovita R & Marreiros J. (2019). Back to the edge: relative coordinate system for use-wear analysis. Archaeological and Anthropological Sciences.
LINK
https://doi.org/10.1007/s12520-019-00801-y

Summary of the standard sample production

Standard sample production. The rock nodules (left; here Baltic flint) are cut into blanks (middle; step #2.2) with a Lapidary rock saw. A diamond band saw was used to cut the blank to create a typical standard sample with a defined edge angle (step #2.4) and a 45° chamfered edge (right, step #2.5). Highlighted are the three beads used as coordinate system (step #2.6).
Cleaning

Amount100 mL Cleaning solution
Amount1 Mass / % volume
ReagentPlurafac LF 901ZeissCatalog #-

Equipment

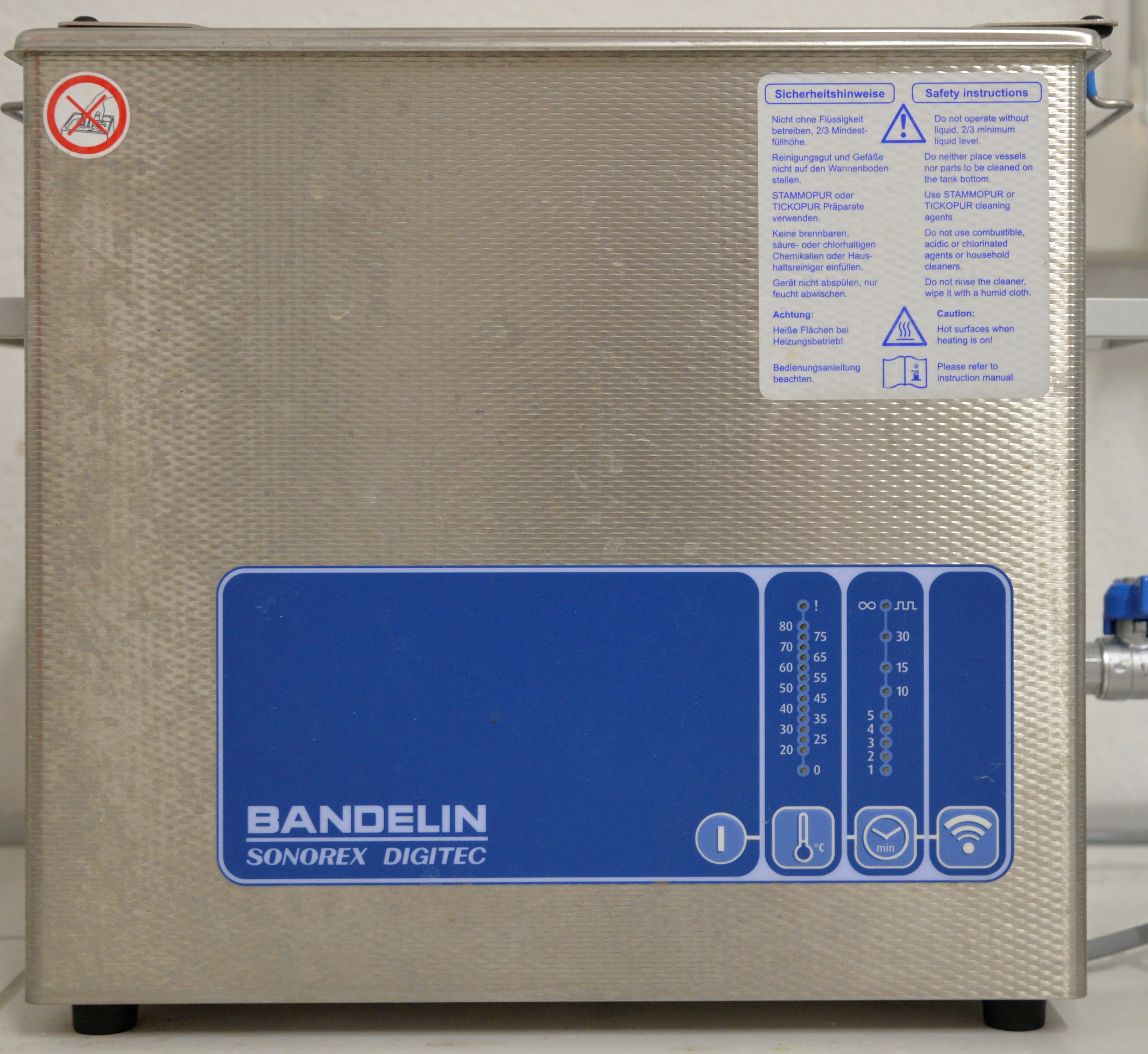

Sonorex Digitec DT255H
NAME
Heated ultrasonic bath
TYPE
Bandelin
BRAND
-
SKU
https://ultraschall-welt.de/ultraschallreiniger/serien/bandelin-geraete/269/bandelin-sonorex-digitec-dt-255-h-5-5?c=0
LINK
4.5 L
SPECIFICATIONS
Temperature40 °C
Duration00:05:00
5m
Contact material
Contact material
Standardised contact material

Three synthetic bone platesReagentModified bone-like polyurethaneSYNBONE®Catalog #PR0114 with the following dimensions were used as contact material:

Amount250 mm length
Amount250 mm width
Amount6 mm thickness
Amount75 % Shore hardness D (+/- 5)

Artificial bone plate.
Mechanical device
Mechanical device
General settings

Linear unidirectional movements (cutting & carving): Amount2000 strokes split in Amount4 cycles .

The cycles are defined by the following number of strokes:
Amount1 strokes to Amount50 strokes
Amount51 strokes to Amount250 strokes
Amount251 strokes to Amount1000 strokes
Amount1001 strokes to Amount2000 strokes
Experimental setup

Equipment
SMARTTESTER
NAME
Modular material tester
TYPE
Inotec AP
BRAND
-
SKU
https://www.smarttester.info/
LINK
recorded values with the time stamps: - for each drive: position, speed, acceleration (+ deceleration) - penetration depth with distance sensor - apllied force with force sensor 1 (strain gauge sensor) - friction with force sensor 2 (strain gauge sensor)
SPECIFICATIONS
Linear movement from start point to end point:

Amount5 kg dead weights (= ~ 50 N)
Amount170 mm movement length
Amount600 mm/s movement speed
Amount4000 mm/s2 movement acceleration
Amount10 Hz reading frequency (for each channel)

Experimental design.
Setup sample holder

The length of the spring of the sample holder was adjusted to compensate for the weight of the sample holder (without dead weights and sample).

Adjust the position of the upper end of the spring on the rail, so that:
  1. the sample holder almost touches the frame, and
  2. at the same time, there should be no pull from the spring onto the sample holder.

Zeroing sample holder.
Setup sample

The experimental standard sample (step #2) was clamped in the sample holder (SMARTTESTER) and manually oriented in all directions.

a) cutting movement
the active edge was parallel to the contact material and the blade is mounted perpendicular to it
(Amount90 ° angle )

Sample FLT8-2 set up above bone plate, ready for the cutting experiment.
b) carving movement
the active edge was orientated in a flat angle towards the contact material (Amount20 ° angle )

Sample LYDIT5-13 set up above bone plate, ready for the carving experiment.
Setup contact material

The bone plates (step #3) were clamped in a custom-made sample holder and fixed with a screw in the middle of the bone plate (see photos in step #5.2).
The plate was aligned with the X-axis.
Program cutting and carving movement

The program is identical for cutting and carving. For each sample, a new template was created (named with the sample ID and the stroke number).

a) Move down in Z-direction to start position
The z-value of the starting point was defined as follows: the sample holder on the z-drive was moved down slowly until the edge of the sample was in contact with the bone plate. 5 mm were added to the position of the z-drive in order to give the sample the possibility to penetrate into the bone plate without cutting through the 6mm-thick bone plate.
b) Move forward in X-direction Amount170 mm (linear movement)
c) Move up in Z-direction approx. Amount20 mm (above bone plate; no contact between contact material and sample)
d) Move backwards in X-direction to starting point
e) Loop 50 times over steps #5.4a-5.4d and export data to CSV
f) Loop 200 times over steps #5.4a-5.4d and export data to CSV
g) Loop 750 times over steps #5.4a-5.4d and export data to CSV
h) Loop 1000 times over steps #5.4a-5.4d and export data to CSV

The experiment was planned as a sequential experiment. The 2000 strokes were therefore split into four sequences (steps #5.4e-h). The experimental standard samples were documented after each sequence (step #6).

For each sequence, five CSV files were exported, one for each recorded channel:
  • Penetration depth as measured by the distance sensor in the sample holder.
  • Force applied (Z-direction) as measured by the force sensor in the sample holder.
  • Friction as measured by the force sensor on the stage for the contact material.
  • Position of the X-drive (travel range).
  • Velocity of the X-drive.

Program as seen in the GUI. Blue = sensors, red = actuators (drives) and green = control flow elements.

Program for sample FLT8-1 as example:
Download FLT8-1_cutting_template.SmartFLT8-1_cutting_template.Smart
Run program

Each sample was used for a duration of ~ Duration07:00:00 (= running time SMARTTESTER)

The following samples were used for the experiment:

Cutting 35° edge angle:

FLT8-4
FLT8-5
FLT8-6
LYDIT5-5
LYDIT5-6
LYDIT5-7

Cutting 45° edge angle:

FLT8-1
FLT8-2
FLT8-3
LYDIT5-2
LYDIT5-3
LYDIT5-4

Carving 35° edge angle:

FLT8-7
FLT8-8
FLT8-9
LYDIT5-11
LYDIT5-12
LYDIT5-13

Carving 45° edge angle:
FLT8-10
FLT8-11
FLT8-12
LYDIT5-8
LYDIT5-9
LYDIT5-10
7h
Documentation
Documentation
Sample documentation

Before the experiment as well as after each cycle all 24 samples were documented in an identical way following these steps:

  • cleaning with tap water and commercial washing up liquid
  • weight measurement (threefold repetition)
Equipment

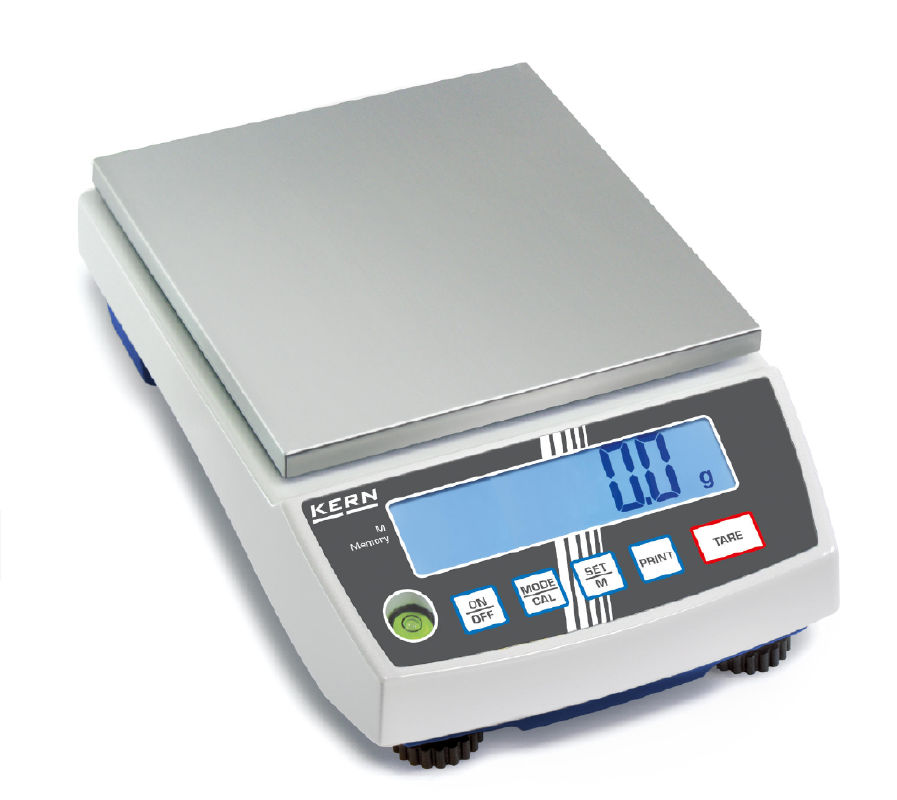

Kern PCB 3500.2
NAME
weighing scale
TYPE
Kern
BRAND
-
SKU
https://www.kern-sohn.com/
LINK
accuracy of 0.1g
SPECIFICATIONS
  • 3D scanning of all samples (identical settings for all scans; step #1.1)
  • based on the 3D models, the volume of each sample could be calculated
Equipment
smartScan-HE R8
NAME
3D structured light scanner
TYPE
AICON
BRAND
-
SKU
https://www.hexagonmi.com/products/structured-light-scanners/aicon-smartscan
LINK
S-150 FOV, resolution of 33 µm
SPECIFICATIONS
  • 3D scanning of the contact material (only before and after 2000 strokes)

Equipment
smartScan-HE R8
NAME
3D structured light scanner
TYPE
AICON
BRAND
-
SKU
https://hexagon.com/products/smartscan
LINK
M-450 FOV, resolution of 108 µm
SPECIFICATIONS

  • optical documentation of three of the four surfaces per sample (one lateral and the two main surfaces)
Equipment
Smartzoom 5
NAME
digital microscope
TYPE
Zeiss
BRAND
-
SKU
https://www.zeiss.de/mikroskopie/produkte/imaging-systems/smartzoom-5.html
LINK
PlanApo D 1.6x/0.10 objective; EDF-stitched images
SPECIFICATIONS
Download index.jpg

  • cleaning the area of interest with a cotton bud with ReagentIsopropanol 70% Carl RothCatalog #CN09.4
  • cleaning the area of interest with a cotton bud withReagentAcetone ≥99.5 %Carl RothCatalog #5025.6
  • moulding of the two main sample surfaces with
ReagentTechnovit Provil Light regularKulzer GmbHCatalog #66009333


Moulding of one of the two surfaces (here: flint).
Data acquisition
Data acquisition
After conducting the experiment and the final documentation of all experimental standard samples, further data was acquired:

  • the edge angles of the samples
  • the depth and width of the cuts and scratches on the artificial bone plate
Edge angle of the experimental standard samples

The 3D models (samples + contact material) were imported as STL files into GOM Inspect and existing mesh holes were closed. 3D models were edited as described in the previously mentioned protocol:

Protocol
Enhancing lithic analysis: Introducing 3D-EdgeAngle as a semi-automated 3D digital method to systematically quantify stone tool edge angle and design
NAME
Enhancing lithic analysis: Introducing 3D-EdgeAngle as a semi-automated 3D digital method to systematically quantify stone tool edge angle and design
CREATED BY
Lisa Schunk

Software
GOM Inspect
NAME
Hotfix 2, Rev. 111729, build 2018-08-22
OS
GOM
DEVELOPER

Based on the closed models, the volume could be calculated.
Additionally, the edge angles of the samples after each cycle were calculated by means of GOM Inspect. To calculate the edge angle, 3D-EdgeAngle was applied again as for the archaeological artefacts (see step #1.2). Note that the parameters changed slightly ('3-points" instead of "2-lines" measuring procedure), since the "3-points" measuring procedure seems to be more suitable for simple morphologies as represented by the standard samples.

The following parameters were applied:

  • "3-points" measuring procedure
  • length of the line was defined with 2 mm
  • as distance to the intersection the mean for distance three to six was calculated
  • only sections two to eight were used


Penetration depth / dimensions of the grooves on the contact material

In addition, the contact material was documented with a Sensofar S-wide (Sensofar Metrology, Spain), a 3D optical metrology system. This way, the cuts and the scratches on the bone plate could be quantified.
Equipment
S wide
NAME
3D optical metrology system
TYPE
Sensofar
BRAND
-
SKU
https://www.sensofar.com/metrology/
LINK
  • each bone plate was documented in four quadrants due to the limited travel range of the stage

Acquisition settings used with the Sensfar S-wide.
The data was processed in ConfoMap (a derivative of MountainsMap Imaging Topography developed by Digital Surf, Besançon, France; version ST 8.1.9286).
Software
ConfoMap (MountainsMap Imaging Tophography)
NAME
Digital Surf, Besançon, France
DEVELOPER
In total, two templates were used:

a) "Patch surfaces of the bone plates acquired with the Sensofar S-wide"
An initial template was needed to patch the single quadrants together, so that the grooves are complete again. This involves levelling and aligning. Afterwards, each groove can be exported individually.

Download BP-I-TFE_S-wide_cutting_2000strokes_20210803_A-B.pdfBP-I-TFE_S-wide_cutting_2000strokes_20210803_A-B.pdf

b) "Processing on single grooves"
This template extracts the topography layer of the grooves and calculates a mean profile of a series of 30 profiles. After levelling the mean profiles, the height and the width of each groove can be calculated.
Download BP-I-TFE_S-wide_cutting_2000strokes_20210803_FLT8-1_45deg.pdfBP-I-TFE_S-wide_cutting_2000strokes_20210803_FLT8-1_45deg.pdf

The ConfoMap templates for each surface in MNT and PDF formats are available in open access on Zenodo (https://doi.org/10.5281/zenodo.7565158). This also includes all original and processed surfaces.
Data analysis
Data analysis
Data analysis

The data acquired within the experiment was analysed in R.
Software
R Studio Desktop
NAME
The R Studio, Inc.
DEVELOPER

The different datasets were split in separate analyses:

a) "analysis_HLC"
This R script imports and plots the Leeb rebound hardness data acquired on the experimental standard samples (see step #2.3).

b) "analysis_EA"
This R script deals with the calculated edge angles from the experimental standard samples (see step #7.1).

c) "analysis_ST.all_sensors"
These R scripts contain the analysis of the data acquired with the five sensors connected to the SMARTTESTER (see step #5.4). However, plots concern only the data from the penetration depth.

d) "analysis_S.wide"
These R scripts deal with the penetration depth of the experimental standard samples into the contact material. The penetration depth is already part of "analysis_ST.all_sensors", but was additionally calculated with a Sensofar S-wide (see step #7.2).

e) "analysis_VW"
This R script contains the volume and the weight measurements for all experimental standard samples from before and after the experiment (see step #6).

The entire repository with all R analyses can be found on GitHub:
https://github.com/lschunk/PastHuman_StoneToolPerformance.git

and on Zenodo:
https://doi.org/10.5281/zenodo.7564605

Results

Available in open access on Zenodo:
https://doi.org/10.5281/zenodo.7564605

Citations
Step 1
K. Günther. Die altsteinzeitlichen Funde der Balver Höhle, Münster
Step 1
O. Jöris. Der spätmittelpaläolithische Fundplatz Buhlen (Grabungen 1966-69): Stratigraphie, Steinartefakte und Fauna des oberen Fundplatzes
Step 1
M. Ulrix-Closset. Le paleolithique moyen dans le bassin mosan en Belgique, Liege
Step 2.6
Calandra I, Schunk L, Rodriguez A, Gneisinger W, Pedergnana A, Paixao E, Pereira T, Iovita R & Marreiros J. Back to the edge: relative coordinate system for use-wear analysis
https://doi.org/10.1007/s12520-019-00801-y
