CUT&Tag Data Processing and Analysis Tutorial for Time Series V.2
Version 1 is forked from CUT&Tag Data Processing and Analysis Tutorial
This protocol is a draft, published without a DOI.
- 1Fred Hutchinson Cancer Research Center
External link: https://yezhengstat.github.io/CUTTag_tutorial/
Protocol Citation: Ye Zheng, Kami Ahmad, Steven Henikoff 2024. CUT&Tag Data Processing and Analysis Tutorial for Time Series. protocols.io https://protocols.io/view/cut-amp-tag-data-processing-and-analysis-tutorial-c9ssz6eeVersion created by Karina Jhingan
Manuscript citation:
Henikoff S, Henikoff JG, Kaya-Okur HS, Ahmad K, Efficient chromatin accessibility mapping in situ by nucleosome-tethered tagmentation. eLife doi: 10.7554/eLife.63274
License: This is an open access protocol distributed under the terms of the Creative Commons Attribution License,  which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited
Protocol status: Working
We use this protocol and it's working
Created: February 27, 2024
Last Modified: February 28, 2024
Protocol Integer ID: 95794
Keywords: CUT&Tag, Data Processing, Analysis, Quality Control,
Disclaimer
Some of this writing is not mine (belonging to Ye Zheng) , and most of the code is either hers or based off of her original code.
Abstract
This tutorial is largely based off of Ye Zheng's CUT&Tag analysis https://www.protocols.io/view/cut-amp-tag-data-processing-and-analysis-tutorial-e6nvw93x7gmk/v1?step=9 and has been edited to fit with time series data as well as a higher focus on producing clusters heatmaps.
I. Introduction
I. Introduction

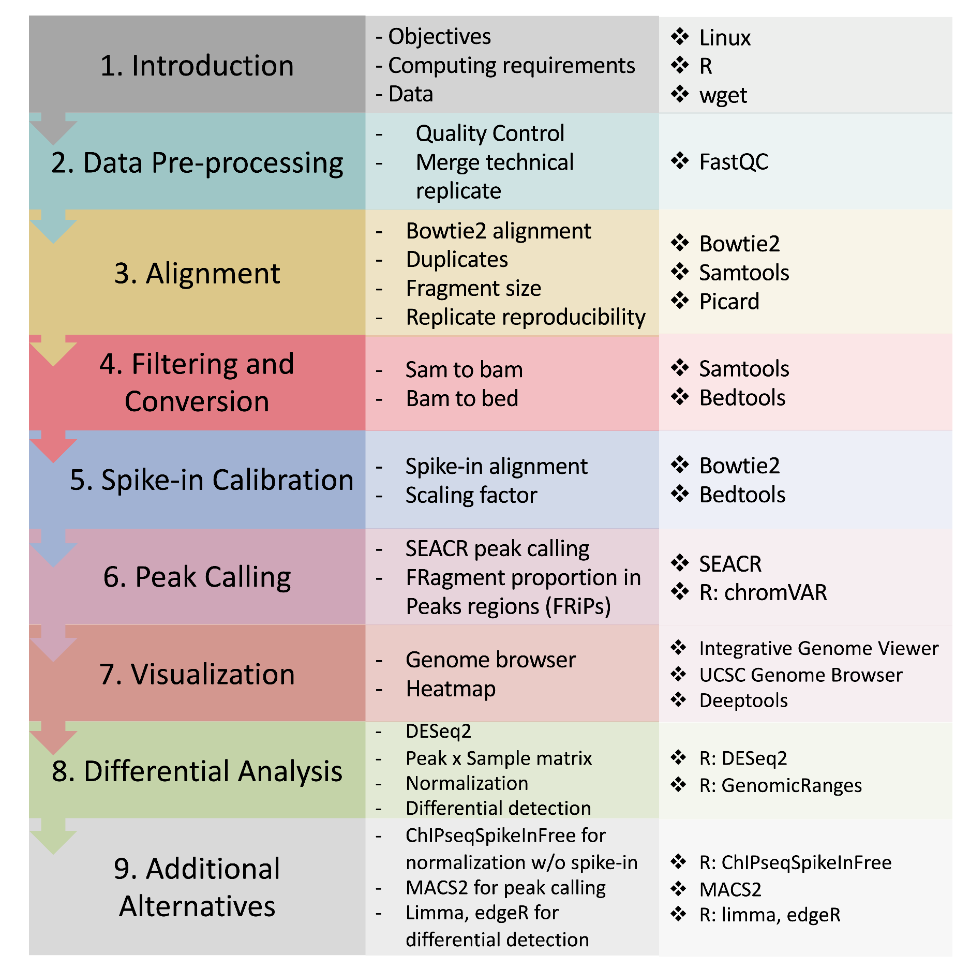

Overview of CUT&Tag
This tutorial is a time series tweaked approach based off of a CUT&Tag processing and analysis pipeline created by Ye Zheng, https://www.protocols.io/view/cut-amp-tag-data-processing-and-analysis-tutorial-e6nvw93x7gmk/v1 (Zheng Y et al (2020). Protocol.io). Some sections and text from Zheng's tutorial are left unchanged. Unlike Zheng's tutorial, this pipeline will not work with duplicates and instead with time series data, focusing on the following histones: K27ac, K4me1, and K4me3.
This tutorial will not go into the science, except for the sections left in that were written by Ye Zheng, instead I'll focus on the computation/coding.
**Note: it's common to receive errors in linux if you are copying and pasting directly from this tutorial because of the format. If this happens, copy the code into a text editor and make sure the format is correct and then paste into the command line from the text editor. Errors may also stem from the order in which modules were loaded so playing around with loading the modules in a different order may help. I would HIGHLY recommend copying the commands over to a code editor such as vscode to be able to view/understand the code better
Requirements
- Linux system
- R (versions >= 3.6)
- dplyr
- stringr
- ggplot2
- viridis
- GenomicRanges
- chromVAR
- DESeq2
- ggpubr
- corrplot
## ==== R codes ==== ##
library(dplyr)
library(stringr)
library(ggplot2)
library(viridis)
library(GenomicRanges)
library(chromVAR) ## For FRiP analysis and differential analysis
library(DESeq2) ## For differential analysis section
library(ggpubr) ## For customizing figures
library(corrplot) ## For correlation plot
library(gt)
library(webshot2)
library(gtExtras)
if (!requireNamespace("BiocManager", quietly = TRUE))
install.packages("BiocManager")
#BiocManager::install("Rsamtools")
#BiocManager::install("GenomicRanges")
#BiocManager::install("GenomicAlignments")
library(Rsamtools)
library(GenomicAlignments)
# Install this package from GitHub
#install.packages("devtools")
library(devtools)
- FastQC(version >= 0.11.9) [Optional]
- Bowtie2 (version >= 2.3.4.3)
- samtools (version >= 1.10)
- bedtools (version >= 2.29.1)
- Picard (version >= 2.18.29)
- SEACR (version >= 1.3)
- deepTools (version >= 2.0)
Data Downloading and Folder Setup
First, we need to specify the project path.
##== linux command ==##
mkdir /fh/fast/greenberg_p/user/kjhingan/CUT_TAG_Exp
projPath="/fh/fast/greenberg_p/user/kjhingan/CUT_TAG_Exp"
We have human and mice data as well as 6 different time points that data was collected from. Our analysis will be focusing on the three noted histones.
##== linux command ==##
histList=("K27ac" "K4me1" "K4me3")
Time=("T1" "T2" "T3" "T4" "T5" "T6")
Organism=("human" "mouse")
Now let's set up the folders where we will be storing the data.
##== linux command ==##
for org in ${Organism[@]}; do
for time in ${Time[@]}; do
for hist in ${histList[@]}; do
mkdir -p $projPath/data/${org}
mkdir -p $projPath/fastq/${org}
mkdir -p ${projPath}/fastqFileQC/${org}
done; done; done
data paths
human="/fh/fast/greenberg_p/SR/ngs/illumina/jwlee/220719_VH00699_162_AAC3GCVM5/Unaligned/Project_jwlee"
mouse="/fh/fast/greenberg_p/SR/ngs/illumina/jwlee/220425_VH00699_108_AAAYMM7M5/Unaligned/Project_jwlee"
And copy the data into the folders we just made (making a copy is a good idea in case we accidently alter the data files it won't alter the original data, this also allows us to organize the data into folders which makes ti easier to reference in for-loops).
#Human:
#T1:
cp $human/hC-T_1-H3K27ac_S3_R1_001.fastq.gz ${projPath}/data/human/T1/K27ac/R1.fastq.gz
cp $human/hC-T_1-H3K27ac_S3_R2_001.fastq.gz ${projPath}/data/human/T1/K27ac/R2.fastq.gz
cp $human/hC-T_1-H3K4me1_S4_R1_001.fastq.gz ${projPath}/data/human/T1/K4me1/R1.fastq.gz
cp $human/hC-T_1-H3K4me1_S4_R2_001.fastq.gz ${projPath}/data/human/T1/K4me1/R2.fastq.gz
cp $human/hC-T_1-H3K4me3_S6_R1_001.fastq.gz ${projPath}/data/human/T1/K4me3/R1.fastq.gz
cp $human/hC-T_1-H3K4me3_S6_R2_001.fastq.gz ${projPath}/data/human/T1/K4me3/R2.fastq.gz
#T2:
cp $human/hC-T_2-H3K27ac_S9_R1_001.fastq.gz ${projPath}/data/human/T2/K27ac/R1.fastq.gz
cp $human/hC-T_2-H3K27ac_S9_R2_001.fastq.gz ${projPath}/data/human/T2/K27ac/R2.fastq.gz
cp $human/hC-T_2-H3K4me1_S10_R1_001.fastq.gz ${projPath}/data/human/T2/K4me1/R1.fastq.gz
cp $human/hC-T_2-H3K4me1_S10_R2_001.fastq.gz ${projPath}/data/human/T2/K4me1/R2.fastq.gz
cp $human/hC-T_2-H3K4me3_S12_R1_001.fastq.gz ${projPath}/data/human/T2/K4me3/R1.fastq.gz
cp $human/hC-T_2-H3K4me3_S12_R2_001.fastq.gz ${projPath}/data/human/T2/K4me3/R2.fastq.gz
#T3:
cp $human/hC-T_3-H3K27ac_S15_R1_001.fastq.gz ${projPath}/data/human/T3/K27ac/R1.fastq.gz
cp $human/hC-T_3-H3K27ac_S15_R2_001.fastq.gz ${projPath}/data/human/T3/K27ac/R2.fastq.gz
cp $human/hC-T_3-H3K4me1_S16_R1_001.fastq.gz ${projPath}/data/human/T3/K4me1/R1.fastq.gz
cp $human/hC-T_3-H3K4me1_S16_R2_001.fastq.gz ${projPath}/data/human/T3/K4me1/R2.fastq.gz
cp $human/hC-T_3-H3K4me3_S18_R1_001.fastq.gz ${projPath}/data/human/T3/K4me3/R1.fastq.gz
cp $human/hC-T_3-H3K4me3_S18_R2_001.fastq.gz ${projPath}/data/human/T3/K4me3/R2.fastq.gz
#T4:
cp $human/hC-T_4-H3K27ac_S21_R1_001.fastq.gz ${projPath}/data/human/T4/K27ac/R1.fastq.gz
cp $human/hC-T_4-H3K27ac_S21_R2_001.fastq.gz ${projPath}/data/human/T4/K27ac/R2.fastq.gz
cp $human/hC-T_4-H3K4me1_S22_R1_001.fastq.gz ${projPath}/data/human/T4/K4me1/R1.fastq.gz
cp $human/hC-T_4-H3K4me1_S22_R2_001.fastq.gz ${projPath}/data/human/T4/K4me1/R2.fastq.gz
cp $human/hC-T_4-H3K4me3_S24_R1_001.fastq.gz ${projPath}/data/human/T4/K4me3/R1.fastq.gz
cp $human/hC-T_4-H3K4me3_S24_R2_001.fastq.gz ${projPath}/data/human/T4/K4me3/R2.fastq.gz
#T5:
cp $human/hC-T_5-H3K27ac_S27_R1_001.fastq.gz ${projPath}/data/human/T5/K27ac/R1.fastq.gz
cp $human/hC-T_5-H3K27ac_S27_R2_001.fastq.gz ${projPath}/data/human/T5/K27ac/R2.fastq.gz
cp $human/hC-T_5-H3K4me1_S28_R1_001.fastq.gz ${projPath}/data/human/T5/K4me1/R1.fastq.gz
cp $human/hC-T_5-H3K4me1_S28_R2_001.fastq.gz ${projPath}/data/human/T5/K4me1/R2.fastq.gz
cp $human/hC-T_5-H3K4me3_S30_R1_001.fastq.gz ${projPath}/data/human/T5/K4me3/R1.fastq.gz
cp $human/hC-T_5-H3K4me3_S30_R2_001.fastq.gz ${projPath}/data/human/T5/K4me3/R2.fastq.gz
#T6:
cp $human/hC-T_6-H3K27ac_S33_R1_001.fastq.gz ${projPath}/data/human/T6/K27ac/R1.fastq.gz
cp $human/hC-T_6-H3K27ac_S33_R2_001.fastq.gz ${projPath}/data/human/T6/K27ac/R2.fastq.gz
cp $human/hC-T_6-H3K4me1_S34_R1_001.fastq.gz ${projPath}/data/human/T6/K4me1/R1.fastq.gz
cp $human/hC-T_6-H3K4me1_S34_R2_001.fastq.gz ${projPath}/data/human/T6/K4me1/R2.fastq.gz
cp $human/hC-T_6-H3K4me3_S36_R1_001.fastq.gz ${projPath}/data/human/T6/K4me3/R1.fastq.gz
cp $human/hC-T_6-H3K4me3_S36_R2_001.fastq.gz ${projPath}/data/human/T6/K4me3/R2.fastq.gz
#MOUSE
#T1:
cp $mouse/mC-T_1-H3K27ac_S3_R1_001.fastq.gz ${projPath}/data/mouse/T1/K27ac/R1.fastq.gz
cp $mouse/mC-T_1-H3K27ac_S3_R2_001.fastq.gz ${projPath}/data/mouse/T1/K27ac/R2.fastq.gz
cp $mouse/mC-T_1-H3K4me1_S4_R1_001.fastq.gz ${projPath}/data/mouse/T1/K4me1/R1.fastq.gz
cp $mouse/mC-T_1-H3K4me1_S4_R2_001.fastq.gz ${projPath}/data/mouse/T1/K4me1/R2.fastq.gz
cp $mouse/mC-T_1-H3K4me3_S6_R1_001.fastq.gz ${projPath}/data/mouse/T1/K4me3/R1.fastq.gz
cp $mouse/mC-T_1-H3K4me3_S6_R2_001.fastq.gz ${projPath}/data/mouse/T1/K4me3/R2.fastq.gz
#T2:
cp $mouse/mC-T_2-H3K27ac_S9_R1_001.fastq.gz ${projPath}/data/mouse/T2/K27ac/R1.fastq.gz
cp $mouse/mC-T_2-H3K27ac_S9_R2_001.fastq.gz ${projPath}/data/mouse/T2/K27ac/R2.fastq.gz
cp $mouse/mC-T_2-H3K4me1_S10_R1_001.fastq.gz ${projPath}/data/mouse/T2/K4me1/R1.fastq.gz
cp $mouse/mC-T_2-H3K4me1_S10_R2_001.fastq.gz ${projPath}/data/mouse/T2/K4me1/R2.fastq.gz
cp $mouse/mC-T_2-H3K4me3_S12_R1_001.fastq.gz ${projPath}/data/mouse/T2/K4me3/R1.fastq.gz
cp $mouse/mC-T_2-H3K4me3_S12_R2_001.fastq.gz ${projPath}/data/mouse/T2/K4me3/R2.fastq.gz
#T3:
cp $mouse/mC-T_3-H3K27ac_S15_R1_001.fastq.gz ${projPath}/data/mouse/T3/K27ac/R1.fastq.gz
cp $mouse/mC-T_3-H3K27ac_S15_R2_001.fastq.gz ${projPath}/data/mouse/T3/K27ac/R2.fastq.gz
cp $mouse/mC-T_3-H3K4me1_S16_R1_001.fastq.gz ${projPath}/data/mouse/T3/K4me1/R1.fastq.gz
cp $mouse/mC-T_3-H3K4me1_S16_R2_001.fastq.gz ${projPath}/data/mouse/T3/K4me1/R2.fastq.gz
cp $mouse/mC-T_3-H3K4me3_S18_R1_001.fastq.gz ${projPath}/data/mouse/T3/K4me3/R1.fastq.gz
cp $mouse/mC-T_3-H3K4me3_S18_R2_001.fastq.gz ${projPath}/data/mouse/T3/K4me3/R2.fastq.gz
#T4:
cp $mouse/mC-T_4-H3K27ac_S21_R1_001.fastq.gz ${projPath}/data/mouse/T4/K27ac/R1.fastq.gz
cp $mouse/mC-T_4-H3K27ac_S21_R2_001.fastq.gz ${projPath}/data/mouse/T4/K27ac/R2.fastq.gz
cp $mouse/mC-T_4-H3K4me1_S22_R1_001.fastq.gz ${projPath}/data/mouse/T4/K4me1/R1.fastq.gz
cp $mouse/mC-T_4-H3K4me1_S22_R2_001.fastq.gz ${projPath}/data/mouse/T4/K4me1/R2.fastq.gz
cp $mouse/mC-T_4-H3K4me3_S24_R1_001.fastq.gz ${projPath}/data/mouse/T4/K4me3/R1.fastq.gz
cp $mouse/mC-T_4-H3K4me3_S24_R2_001.fastq.gz ${projPath}/data/mouse/T4/K4me3/R2.fastq.gz
#T5:
cp $mouse/mC-T_5-H3K27ac_S27_R1_001.fastq.gz ${projPath}/data/mouse/T5/K27ac/R1.fastq.gz
cp $mouse/mC-T_5-H3K27ac_S27_R2_001.fastq.gz ${projPath}/data/mouse/T5/K27ac/R2.fastq.gz
cp $mouse/mC-T_5-H3K4me1_S28_R1_001.fastq.gz ${projPath}/data/mouse/T5/K4me1/R1.fastq.gz
cp $mouse/mC-T_5-H3K4me1_S28_R2_001.fastq.gz ${projPath}/data/mouse/T5/K4me1/R2.fastq.gz
cp $mouse/mC-T_5-H3K4me3_S30_R1_001.fastq.gz ${projPath}/data/mouse/T5/K4me3/R1.fastq.gz
cp $mouse/mC-T_5-H3K4me3_S30_R2_001.fastq.gz ${projPath}/data/mouse/T5/K4me3/R2.fastq.gz
#T6:
cp $mouse/mC-T_6-H3K27ac_S33_R1_001.fastq.gz ${projPath}/data/mouse/T6/K27ac/R1.fastq.gz
cp $mouse/mC-T_6-H3K27ac_S33_R2_001.fastq.gz ${projPath}/data/mouse/T6/K27ac/R2.fastq.gz
cp $mouse/mC-T_6-H3K4me1_S34_R1_001.fastq.gz ${projPath}/data/mouse/T6/K4me1/R1.fastq.gz
cp $mouse/mC-T_6-H3K4me1_S34_R2_001.fastq.gz ${projPath}/data/mouse/T6/K4me1/R2.fastq.gz
cp $mouse/mC-T_6-H3K4me3_S36_R1_001.fastq.gz ${projPath}/data/mouse/T6/K4me3/R1.fastq.gz
cp $mouse/mC-T_6-H3K4me3_S36_R2_001.fastq.gz ${projPath}/data/mouse/T6/K4me3/R2.fastq.gz
II. Data Pre-processing
II. Data Pre-processing
1. Run FastQC for quality check
##== linux command ==##
ml FastQC
for org in ${Organism[@]}; do
for time in ${Time[@]}; do
for hist in ${histList[@]}; do
fastqc -o ${projPath}/fastqFileQC/${org}/${time}/${hist} -f fastq ${projPath}/data/${org}/${time}/${hist}/R1.fastq.gz
fastqc -o ${projPath}/fastqFileQC/${org}/${time}/${hist} -f fastq ${projPath}/data/${org}/${time}/${hist}/R2.fastq.gz
done; done; done
2. Copy over results to your local computer view the html files (alternatively open up R studio launcher for Fred Hutch and navigate to files and open through there to avoid downloading the files).
##== linux command (run on local shell) ==##
for org in ${Organism[@]}; do
for time in ${Time[@]}; do
for hist in ${histList[@]}; do
scp username@rhino.fhcrc.org:$projPath/fastqFileQC/${org}/${time}/${hist}/R1_fastqc.html /local/path
scp username@rhino.fhcrc.org:$projPath/fastqFileQC/${org}/${time}/${hist}/R2_fastqc.html /local/path
done; done; done
3 Interpret the quality check results.
Quality check reference: https://www.bioinformatics.babraham.ac.uk/projects/fastqc/bad_sequence_fastqc.html.
The discordant sequence content at the beginning of the reads is a common phenomenon for CUT&Tag reads. Failing to pass the Per base sequence content does not mean your data failed.
Figure 3. Per base sequence content fails the FastQC quality check.
- It can be due to the Tn5 preference.
Trim Reads
Documentation: https://cutadapt.readthedocs.io/en/v4.4/guide.html#paired-end
Since the experiment used 50x50 PE we will be trimming the reads with Cutadapt
##== linux command ==##
ml cutadapt
for org in ${Organism[@]}; do
for time in ${Time[@]}; do
for hist in ${histList[@]}; do
mkdir -p ${projPath}/data/trim/${org}/${time}/${hist}
cutadapt -o ${projPath}/data/trim/${org}/${time}/${hist}/R1.fastq -p ${projPath}/data/trim/${org}/${time}/${hist}/R2.fastq ${projPath}/data/${org}/${time}/${hist}/R1.fastq.gz ${projPath}/data/${org}/${time}/${hist}/R2.fastq.gz
done; done; done
example output
This is cutadapt 4.1 with Python 3.9.6
Command line parameters: -o /fh/fast/greenberg_p/user/kjhingan/CUT_TAG_test/data/trim/human/T1/K27ac/R1.fastq -p /fh/fast/greenberg_p/user/kjhingan/CUT_TAG_test/data/trim/human/T1/K27ac/R2.fastq /fh/fast/greenberg_p/user/kjhingan/CUT_TAG_test/data/human/T1/K27ac/R1.fastq.gz /fh/fast/greenberg_p/user/kjhingan/CUT_TAG_test/data/human/T1/K27ac/R2.fastq.gz
Processing paired-end reads on 1 core ...
Done 00:00:26 2,573,565 reads @ 10.5 µs/read; 5.73 M reads/minute
Finished in 27.08 s (11 µs/read; 5.70 M reads/minute).
=== Summary ===
Total read pairs processed: 2,573,565
Pairs written (passing filters): 2,573,565 (100.0%)
Total basepairs processed: 257,356,500 bp
Read 1: 128,678,250 bp
Read 2: 128,678,250 bp
Total written (filtered): 257,356,500 bp (100.0%)
Read 1: 128,678,250 bp
Read 2: 128,678,250 bp
III. Alignment
III. Alignment
Bowtie2 alignment
Make folders and download genome files
##== linux command ==##
ml SAMtools
ml Bowtie2
mkdir $projPath/bowtie2Index
mkdir ${projPath}/bowtie2Index/hg38
mkdir ${projPath}/bowtie2Index/mm10
cd ${projPath}/data/human
wget --no-check-certificate https://hgdownload.soe.ucsc.edu/goldenPath/hg38/bigZips/hg38.fa.gz
cd ${projPath}/data/mouse
wget --no-check-certificate https://hgdownload.soe.ucsc.edu/goldenPath/mm10/bigZips/mm10.fa.gz
Build the Bowtie Index for each genome
##== linux command ==##
bowtie2-build ${projPath}/data/human/hg38.fa.gz ${projPath}/bowtie2Index/hg38
bowtie2-build ${projPath}/data/mouse/mm10.fa.gz ${projPath}/bowtie2Index/mm10
The paired-end reads are aligned by Bowtie2
*I added in the time function prior to the bowtie2 call to keep track of how long each call takes and how many calls have completed as bowtie2 does not output anything to the terminals it runs or completes.
##== linux command ==##
for org in ${Organism[@]}; do
if [ "${org}" == "human" ]
then
ref="${projPath}/bowtie2Index/hg38"
else
ref="${projPath}/bowtie2Index/mm10"
fi
for time in ${Time[@]}; do
for hist in ${histList[@]}; do
mkdir -p ${projPath}/alignment/sam/bowtie2_summary/${org}/${time}/${hist}
time bowtie2 --local --very-sensitive --no-mixed --no-discordant --phred33 -I 10 -X 700 -p 1 -x ${ref} -1 ${projPath}/data/trim/${org}/${time}/${hist}/R1.fastq -2 ${projPath}/data/trim/${org}/${time}/${hist}/R2.fastq -S ${projPath}/alignment/sam/bowtie2_summary/${org}/${time}/${hist}/bowtie2.sam &> ${projPath}/alignment/sam/bowtie2_summary/${org}/${time}/${hist}/bowtie2.txt
done; done; done
Note: The runtimes I was receiving were around 10-30 (a few for the mice calls took upwards of around 140 minutes) minutes for each. There are 36 calls to bowtie2 so this will take a while.
If you don't trim your reads , use this parameter instead of --local
--end-to-end
Alignment summary
Bowtie2 alignment results summaries are saved at
##== linux command ==##
cat ${projPath}/alignment/sam/bowtie2_summary/${org}/${time}/${hist}/bowtie2.txt
## example below is from calling
cat ${projPath}/alignment/sam/bowtie2_summary/human/T1/K27ac/bowtie2.txt
and you should expect the results look similar.
2573565 reads; of these:
2573565 (100.00%) were paired; of these:
72097 (2.80%) aligned concordantly 0 times
1852091 (71.97%) aligned concordantly exactly 1 time
649377 (25.23%) aligned concordantly >1 times
97.20% overall alignment rate
- 2573565 is the sequencing depth, i.e., the total number of paired reads.
- 72097 is the number of read-pairs that fail to be mapped.
- 1852091 + 649377 is the number of read-pairs that are successfully mapped.
- 97.20% is the overall alignment rate
III. Alignment Summary
III. Alignment Summary
Report sequencing mapping summary
Summarize the raw reads and uniquely mapping reads to report the efficiency of alignment. Alignment frequencies are expected to be >80% for high-quality data. CUT&Tag data typically has very low backgrounds, so as few as 1 million mapped fragments can give robust profiles for a histone modification in the human genome. Profiling of less-abundant transcription factors and chromatin proteins may require 10 times as many mapped fragments for downstream analysis.
We can evaluate the following metrics:
- Sequencing depth
- Alignment rate
- Number of mappable fragments
- Duplication rate
- Unique library size
- Fragment size distribution
1. Sequencing depth
##=== R command ===##
## Path to the project and histone list
projPath = "/fh/fast/greenberg_p/user/kjhingan/CUT_TAG_Exp"
histList = c("K27ac", "K4me1", "K4me3")
timeList = c("T1","T2","T3","T4","T5","T6")
sampleList= c("K27ac_T1", "K27ac_T2", "K27ac_T3", "K27ac_T4", "K27ac_T5", "K27ac_T6",
"K4me1_T1", "K4me1_T2", "K4me1_T3", "K4me1_T4", "K4me1_T5", "K4me1_T6",
"K4me3_T1", "K4me3_T2", "K4me3_T3", "K4me3_T4", "K4me3_T5", "K4me3_T6")
## edit the following based on control used: we used T1 as the control
timeControl="T1"
# this is the list of all time points except T1 that we will use when comparing timepoints to T1
timeL = c("T2","T3","T4","T5","T6")
# this is the list of all samples except T1 that we will use when comparing timepoints to T1
sampleControlList= c("K27ac_T2", "K27ac_T3", "K27ac_T4", "K27ac_T5", "K27ac_T6",
"K4me1_T2", "K4me1_T3", "K4me1_T4", "K4me1_T5", "K4me1_T6",
"K4me3_T2", "K4me3_T3", "K4me3_T4", "K4me3_T5", "K4me3_T6")
I found it was simpler to just set the organism as a variable, run the entire R file (the entire R file can be found below) once with the this variable declared up at the top of the file, first organism set to mouse and then to human
You will also need to perform find and replace on all mm10/hg38 in the R file to make sure we're referencing the correct genome for the organism we're currently running the script on
##=== R command ===##
${projPath}/CUT_TAG_notes.R
#first run with
org="mouse"
#and then run entire program with
org="human"
Collect the alignment results from the bowtie2 alignment summary files
##=== R command ===##
alignResult = c()
for(hist in histList){
for (time in timeList){
alignRes = read.table(paste0(projPath, "/alignment/sam/bowtie2_summary/", org,"/",time,"/",hist,"/", "bowtie2.txt"), header = FALSE, fill = TRUE)
alignRate = substr(alignRes$V1[6], 1, nchar(as.character(alignRes$V1[6]))-1)
alignResult = data.frame(Histone = hist, TimePoint = time,
SequencingDepth = alignRes$V1[1] %>% as.character %>% as.numeric,
MappedFragNum_mm10 = alignRes$V1[4] %>% as.character
%>% as.numeric + alignRes$V1[5] %>% as.character %>% as.numeric,
AlignmentRate_mm10 = alignRate %>% as.numeric) %>% rbind(alignResult, .)
}
}
alignResult$Histone = factor(alignResult$Histone, levels = histList)
alignResult %>% mutate(AlignmentRate_mm10 = paste0(AlignmentRate_mm10, "%"))
| A | B | C | D | E | |
| K27ac | T1 | 1862828 | 1692798 | 90.87% | |
| K27ac | T2 | 6024227 | 5830620 | 96.79% | |
| K27ac | T3 | 6765622 | 6510809 | 96.23% | |
| K27ac | T4 | 143632 | 136962 | 95.36% | |
| K27ac | T5 | 808940 | 787214 | 97.31% | |
| K27ac | T6 | 377282 | 368188 | 97.59% | |
| K4me1 | T1 | 6073644 | 5928383 | 97.61% | |
| K4me1 | T2 | 12248049 | 11882867 | 97.02% | |
| K4me1 | T3 | 4995126 | 4800522 | 96.1% | |
| K4me1 | T4 | 2177 | 2109 | 96.88% | |
| K4me1 | T5 | 508877 | 500117 | 98.28% | |
| K4me1 | T6 | 342994 | 336391 | 98.07% | |
| K4me3 | T1 | 13439496 | 13181855 | 98.08% | |
| K4me3 | T2 | 6002937 | 5906183 | 98.39% | |
| K4me3 | T3 | 4440669 | 4269693 | 96.15% | |
| K4me3 | T4 | 978001 | 950906 | 97.23% | |
| K4me3 | T5 | 2421522 | 2376602 | 98.14% | |
| K4me3 | T6 | 2608987 | 2568003 | 98.43% |
Results are from the mm10 data
2. Visualizing the sequencing depth and alignment results.
Generate sequencing depth boxplot
##=== R command ===##
fig3A = alignResult %>% ggplot(aes(x = Histone, y = SequencingDepth/1000000, fill = Histone)) +
geom_boxplot() +
geom_jitter(aes(color = TimePoint), position = position_jitter(0.15)) +
scale_fill_viridis(discrete = TRUE, begin = 0.1, end = 0.9, option = "magma", alpha = 0.8) +
scale_color_viridis(discrete = TRUE, begin = 0.1, end = 0.9) +
theme_bw(base_size = 18) +
ylab("Sequencing Depth per Million") +
xlab("") +
ggtitle("A. Sequencing Depth") +
theme(text = element_text(size = 12)) +
theme(axis.title.y = element_text(size = 10))
fig3B = alignResult %>% ggplot(aes(x = Histone, y = MappedFragNum_mm10/1000000, fill = Histone)) +
geom_boxplot() +
geom_jitter(aes(color = TimePoint), position = position_jitter(0.15)) +
scale_fill_viridis(discrete = TRUE, begin = 0.1, end = 0.9, option = "magma", alpha = 0.8) +
scale_color_viridis(discrete = TRUE, begin = 0.1, end = 0.9) +
theme_bw(base_size = 18) +
ylab("Mapped Fragments per Million") +
xlab("") +
ggtitle("B. Alignable Fragment (mm10)") +
theme(text = element_text(size = 12)) +
theme(axis.title.y = element_text(size = 10))
fig3C = alignResult %>% ggplot(aes(x = Histone, y = AlignmentRate_mm10, fill = Histone)) +
geom_boxplot() +
geom_jitter(aes(color = TimePoint), position = position_jitter(0.15)) +
scale_fill_viridis(discrete = TRUE, begin = 0.1, end = 0.9, option = "magma", alpha = 0.8) +
scale_color_viridis(discrete = TRUE, begin = 0.1, end = 0.9) +
theme_bw(base_size = 18) +
ylab("% of Mapped Fragments") +
xlab("") +
ggtitle("C. Alignment Rate (mm10)") +
theme(text = element_text(size = 12)) +
theme(axis.title.y = element_text(size = 10))
alignPlot <- ggarrange(fig3A, fig3B, fig3C, ncol = 2, nrow=2, common.legend = TRUE,
legend="bottom") %>% annotate_figure(top = text_grob(str_to_title(org))) + bgcolor("white")
alignPlot
ggsave(plot=alignPlot,paste0(org,"_AlignmentSummaryPlot.png"),path=paste0(projPath,"/visuals/",org))
IV. Alignment filtering and file format conversion
IV. Alignment filtering and file format conversion
Prepare sam files for peak calling
Filter and keep the mapped read pairs
##== linux command ==##
ml SAMtools
for org in ${Organism[@]}; do
for time in ${Time[@]}; do
for hist in ${histList[@]}; do
mkdir -p $projPath/alignment/bam/${org}/${time}/${hist}/
samtools view -bS -F 0x04 ${projPath}/alignment/sam/bowtie2_summary/${org}/${time}/${hist}/bowtie2.sam >$projPath/alignment/bam/${org}/${time}/${hist}/bowtie2.mapped.bam
done; done; done
V. Peak calling
V. Peak calling
MACS2
This is assuming T1 as control as MACS2 has a control file as an input (we are performing T1 vs T2 .... T1 vs T6 )
timeControl="T1" ;
TimeCompare=("T2" "T3" "T4" "T5" "T6");
parameters:
-c : control file (We are using T1 as control)
callpeak: peak calling from alignment (bowtie2) results.
-f BAMPE : our input files are formatted as BAM
-n: output file name
-q : q-value (these are the following q Values we tried (0.1, 0.001, 0.00001).
--keep-dup: we decided not to remove duplicates in this experiment (more info?)
##== linux command ==##
ml MACS2
for org in ${Organism[@]}; do
if [ "${org}" == "human" ]
then
genome="hs"
else
genome="mm"
fi
for time in ${TimeCompare[@]}; do
for hist in ${histList[@]}; do
mkdir -p ${projPath}/peakCalling/MACS2/${org}/${timeControl}_control/${time}/${hist}
macs2 callpeak -t $projPath/alignment/bam/${org}/${time}/${hist}/bowtie2.mapped.bam \
-c $projPath/alignment/bam/${org}/${timeControl}/${hist}/bowtie2.mapped.bam \
-g ${genome} -f BAMPE -n macs2_peak_q0.1 --outdir $projPath/peakCalling/MACS2/${org}/${timeControl}_control/${time}/${hist}/
-q 0.1 --keep-dup all 2>${projPath}/peakCalling/MACS2/${org}/${timeControl}_control/${time}/${hist}/macs2Peak_summary.txt
done; done; done
add .bed to the end of your file names (as seen in the below code section) for narrow peak files in order to input into ucsc genome browser (https://genome.ucsc.edu/cgi-bin/hgCustom?hgsid=1943424434_SEeSvx8fAuJKYhm1CWSwvicOd42W) or IgV (https://igv.org/app/)
##== linux command ==##
for org in ${Organism[@]}; do
for time in ${TimeCompare[@]}; do
for hist in ${histList[@]}; do
mv $projPath/peakCalling/MACS2/${org}/${timeControl}_control/${time}/${hist}/macs2_peak_q0.1_peaks.narrowPeak $projPath/peakCalling/MACS2/${org}/${timeControl}_control/${time}/${hist}/macs2_peak_q0.1_peaks.narrowPeak.bed
done; done; done
*Note we also tested out different q values and MACS2 settings (different combinations of no model and broad) to see how it affects the outputs that we later use as the region input when creating the heatmaps
##== linux command ==##
## testing out different parameters for MACS2
qValues=(0.1 0.001 0.00001)
for org in ${Organism[@]}; do
if [ "${org}" == "human" ]
then
genome="hs"
else
genome="mm"
fi
for hist in ${histList[@]}; do
for time in ${TimeCompare[@]}; do
for q in ${qValues[@]}; do
mkdir -p outdir $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/${time}/${hist}/
#normal
time macs2 callpeak -t $projPath/alignment/bam/${org}/${time}/${hist}/bowtie2.mapped.bam \
-c $projPath/alignment/bam/${org}/${timeControl}/${hist}/bowtie2.mapped.bam \
-g ${genome} -f BAMPE -n macs2_peak_q${q} --outdir $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/${time}/${hist}/ \
-q ${q} --keep-dup all
#nomodel
time macs2 callpeak -t $projPath/alignment/bam/${org}/${time}/${hist}/bowtie2.mapped.bam \
-c $projPath/alignment/bam/${org}/${timeControl}/${hist}/bowtie2.mapped.bam \
-g ${genome} -f BAMPE -n macs2_peak_q${q}_nomodel --outdir $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/${time}/${hist}/ \
-q ${q} --nomodel --keep-dup all
#broad
time macs2 callpeak -t $projPath/alignment/bam/${org}/${time}/${hist}/bowtie2.mapped.bam \
-c $projPath/alignment/bam/${org}/${timeControl}/${hist}/bowtie2.mapped.bam \
-g ${genome} -f BAMPE -n macs2_peak_q${q}_broad --outdir $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/${time}/${hist}/ \
-q ${q} --broad --keep-dup all
#nomodel and broad
time macs2 callpeak -t $projPath/alignment/bam/${org}/${time}/${hist}/bowtie2.mapped.bam \
-c $projPath/alignment/bam/${org}/${timeControl}/${hist}/bowtie2.mapped.bam \
-g ${genome} -f BAMPE -n macs2_peak_q${q}_nomodel_broad --outdir $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/${time}/${hist}/ \
-q ${q} --broad --nomodel --keep-dup all
done; done; done; done
FRagment proportion in Peaks regions (FRiPs)
We calculate the fraction of reads in peaks (FRiPs) as a measure of signal-to-noise and contrast it to FRiPs in the IgG control dataset for illustration. Although sequencing depths for CUT&Tag are typically only 1-5 million reads, the low background of the method results in high FRiP scores.
##=== R command ===##
peakN = c()
#peakWidth = c()
peakOverlap = c()
inPeakData = c()
for(sample in sampleControlList){
histInfo=str_split(sample,"_")[[1]]
hist=histInfo[1]
time=histInfo[2]
peakInfo = read.table(paste0(projPath, "/peakCalling/MACS2/",org,"/",timeControl,"_control/",
time,"/",hist,"/", "macs2_peak_q0.1_peaks.narrowPeak.bed"),
header = FALSE, fill = TRUE) %>% mutate(width = abs(V3-V2))
peakN = data.frame(Histone = hist, TimePoint = time, peakN = nrow(peakInfo)) %>% rbind(peakN, .)
peak.gr = GRanges(seqnames = peakInfo$V1, IRanges(start = peakInfo$V2,
end = peakInfo$V3), strand = "*")
bamFile = paste0(projPath,"/alignment/bam/", org,"/",time,"/",hist,"/bowtie2.mapped.bam")
fragment_counts <- getCounts(bamFile, peak.gr, paired = TRUE, by_rg = FALSE,
format = "bam")
inPeakN = counts(fragment_counts)[,1] %>% sum
inPeakData = rbind(inPeakData, data.frame(inPeakN = inPeakN, Histone = hist,
TimePoint = time))
}
peakN %>% select(Histone, TimePoint, peakN)
Histone TimePoint peakN
1 K27ac T2 1370
2 K27ac T3 127
3 K27ac T4 240
4 K27ac T5 706
5 K27ac T6 1067
6 K4me1 T2 3134
7 K4me1 T3 1748
8 K4me1 T4 1
9 K4me1 T5 124
10 K4me1 T6 94
11 K4me3 T2 12625
12 K4me3 T3 14697
13 K4me3 T4 327
14 K4me3 T5 7241
15 K4me3 T6 1800
frip = left_join(inPeakData, alignResult, by = c("Histone", "TimePoint")) %>%
mutate(frip = inPeakN/MappedFragNum_mm10 * 100)
frip %>% select(Histone, TimePoint, SequencingDepth, MappedFragNum_mm10,
AlignmentRate_mm10, FragInPeakNum = inPeakN, FRiPs = frip)
Histone TimePoint SeqDepth MappedFragNum_mm10 AlignRate_mm10 FragInPeakNum FRiPs
1 K27ac T2 6024227 5830620 96.79 204870 3.5136915
2 K27ac T3 6765622 6510809 96.23 28967 0.4449063
3 K27ac T4 143632 136962 95.36 1515 1.1061462
4 K27ac T5 808940 787214 97.31 16956 2.1539251
5 K27ac T6 377282 368188 97.59 12801 3.4767564
6 K4me1 T2 12248049 11882867 97.02 475041 3.9976969
7 K4me1 T3 4995126 4800522 96.10 119477 2.4888335
8 K4me1 T4 2177 2109 96.88 11 0.5215742
9 K4me1 T5 508877 500117 98.28 19376 3.8742934
10 K4me1 T6 342994 336391 98.07 14122 4.1980909
11 K4me3 T2 6002937 5906183 98.39 1478082 25.0260109
12 K4me3 T3 4440669 4269693 96.15 1644648 38.5191160
13 K4me3 T4 978001 950906 97.23 26907 2.8296172
14 K4me3 T5 2421522 2376602 98.14 421345 17.7288835
15 K4me3 T6 2608987 2568003 98.43 140770 5.4816914
Visualization of peak number, peak width, and FRiPs
##=== R command ===##
fig7A = peakN %>% ggplot(aes(x = Histone, y = peakN, fill = Histone)) +
geom_boxplot() +
geom_jitter(aes(color = TimePoint), position = position_jitter(0.15)) +
scale_fill_viridis(discrete = TRUE, begin = 0.1, end = 0.55, option = "magma", alpha = 0.8) +
scale_color_viridis(discrete = TRUE, begin = 0.1, end = 0.9) +
theme_bw(base_size = 10) +
ylab("Number of Peaks") +
xlab("") +
theme(axis.text=element_text(size=8), axis.title.y=element_text(size=12))
fig7B = peakN %>% ggplot(aes(x = Histone, y = peakWidth, fill = Histone)) +
geom_violin() +
#facet_grid(TimePoint) +
scale_fill_viridis(discrete = TRUE, begin = 0.1, end = 0.55, option = "magma", alpha = 0.8) +
scale_color_viridis(discrete = TRUE, begin = 0.1, end = 0.9) +
scale_y_continuous(trans = "log", breaks = c(400, 3000, 22000)) +
theme_bw(base_size = 10) +
ylab("Width of Peaks") +
xlab("") +
theme(axis.text=element_text(size=8), axis.title.y=element_text(size=12))
fig7D = frip %>% ggplot(aes(x = Histone, y = frip, fill = Histone, label = round(frip, 2))) +
geom_boxplot() +
geom_jitter(aes(color = TimePoint), position = position_jitter(0.15)) +
scale_fill_viridis(discrete = TRUE, begin = 0.1, end = 0.55, option = "magma", alpha = 0.8) +
scale_color_viridis(discrete = TRUE, begin = 0.1, end = 0.9) +
theme_bw(base_size = 18) +
ylab("% of Fragments in Peaks") +
xlab("") +
theme(axis.text=element_text(size=8), axis.title.y=element_text(size=12))
PeakPlot <- ggarrange(fig7A,fig7D, common.legend = TRUE, legend="bottom") %>%
annotate_figure(top = text_grob(str_to_title(org))) + bgcolor("white")
PeakPlot
mm10
VI. File Formatting
VI. File Formatting
More FIle Format Conversion
Here we will sort our bam files by coordinates. I also left in the option to produce raw bigwig files for the heatmap input, but we chose to normalize/scale so in the next step we create normalized bigwig files to input for creating the heatmaps instead.
##== linux command ==##
ml deepTools # for optional bamCoverage command
for org in ${Organism[@]}; do
for time in ${Time[@]}; do
for hist in ${histList[@]}; do
mkdir -p $projPath/alignment/bigwig/${org}/${time}/${hist}
samtools sort -o $projPath/alignment/bam/${org}/${time}/${hist}/bowtie2.sorted.bam $projPath/alignment/bam/${org}/${time}/${hist}/bowtie2.mapped.bam
samtools index $projPath/alignment/bam/${org}/${time}/${hist}/bowtie2.sorted.bam
#optional
bamCoverage -b $projPath/alignment/bam/${org}/${time}/${hist}/sorted.bam -o $projPath/alignment/bigwig/${org}/${time}/${hist}/raw.bw
#end of optional
done; done; done
VII. Scaling
VII. Scaling
The original tutorial scales the data using E.coli counts . Since our data did not contain E.coli we will be scaling based on reads per genome coverage.
Here we are going to be scaling the bigwig files that we will be inputting to create our heatmaps.
*genome size (gsize) values can be found in deeptools bamcoverage documentation https://deeptools.readthedocs.io/en/latest/content/feature/effectiveGenomeSize.html
##== linux command ==##
ml deepTools
for org in ${Organism[@]}; do
if [ "${org}" == "human" ]
then
gsize="2913022398"
else
gsize="2652783500"
fi
for time in ${Time[@]}; do
for hist in ${histList[@]}; do
bamCoverage --normalizeUsing RPGC --effectiveGenomeSize ${gsize} -b $projPath/alignment/bam/${org}/${time}/${hist}/bowtie2.sorted.bam -o $projPath/alignment/bigwig/${org}/${time}/${hist}/normalized.bw
done; done; done
VIII. Visualization
VIII. Visualization
Heatmap Setup
Setup for using DeepTool's heatmap functions
##== linux command ==##
ml R
ml SAMtools
ml Homer
ml deepTools
ml SAMtools
*Note: if you receive an error that a genome is not available through the Homer program loaded through 'ml Homer'. You may need to download the Homer program to be able to manually install the genome
##== linux command (if needed)==##
#if you receive an error about a genome not found and are unable to install it you will have to #download the package yourself if you are using a cluster computing server where you #loaded homer via module load
#installing HOMER as a package
cd $projPath/tools
mkdir $projPath/tools/Homer
wget http://homer.ucsd.edu/homer/configureHomer.pl
perl $projPath/tools/Homer/configureHomer.pl -install
perl $projPath/tools/Homer/configureHomer.pl -install mm10
perl $projPath/tools/Homer/configureHomer.pl -install hg38
PATH=$PATH:$projPath/tools/Homer/bin/
#create txt file with the following quoted text "PATH=$PATH:$projPath/tools/Homer/bin/" and move into projPath directory and name bash_profile
##end of installation
and run this following code in place of 'ml Homer'
##== linux command (if needed)==##
cd $projPath/tools/Homer/bin
source $projPath/bash_profile
Heatmap on CUT&Tag MACS2 peaks
This is a large for-loop so for ease I will be breaking the code block into steps explaining what is going on.
An overview of the code is that in order to have the heatmap focus on the regions where we have the MACS2 peaks we will be merging the peak files using Homer's mergePeaks. mergePeak's output is a txt file, so we will turn it into a bed file and then use that as the input for the -R (region) parameter in deepTool's heatmap.
Step 1) Merge Peaks: We tried using various values for distances (the best value will likely vary for different histones and genomes); distances=("5000" "7500" "10000"). Here we merge all of our peakCalling data for the given Histone and genome
Step 2) Convert mergePeak output into a bed file
Step 3) This is the actual heatmap function, or at least the first part. As creating the heatmap involves first creating the matrix and then the second part is plotting the matrix.
parameters:
-p 10: number of cores (this is a timely function so I would recommend instead of running the entire for loop at once, try just running pick an example genome, histone, and distance combination to run once to make sure it runs alright (the most common error is referencing a file that does not exist so check your input files for typos). It is normal for either the matrix or plotting portion to sometimes take up to 12 hours for one function call.
Debugging tip: If you see the terminal output "Preloading the following deepBlue files" followed by one of your file paths, that means that that path does not exist (you likely have a typo in the path) but instead of throwing an error right away, deepTools assumes you're referencing one of their deepBlue files and will then throw a different error.
Step 4) This is where we input the matrix file we created form the compute matrix function and output the heat map visual, we also have the option to save the cluster information in outFileSortedRegions. We will be using the cluster information to run Homer's motif finding later to analyze each cluster. The only parameter that needs tuning here is the kmeans parameter as this tells the function how many clusters to look for. We tried clusterSizes=("3" "4" "5")
Parameter values to try out
##== linux command ==##
distances=("5000" "7500" "10000")
clusterSizes=("3" "4" "5")
##== linux command ==##
for org in ${Organism[@]}; do
for hist in ${histList[@]}; do
for distance in ${distances[@]}; do
##Step 1
mkdir -p $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}
mergePeaks -d ${distance} $projPath/peakCalling/MACS2/${org}/${timeControl}_control/T2/${hist}/macs2_peak_q0.1_peaks.narrowPeak.bed $projPath/peakCalling/MACS2/${org}/${timeControl}_control/T3/${hist}/macs2_peak_q0.1_peaks.narrowPeak.bed $projPath/peakCalling/MACS2/${org}/${timeControl}_control/T4/${hist}/macs2_peak_q0.1_peaks.narrowPeak.bed $projPath/peakCalling/MACS2/${org}/${timeControl}_control/T5/${hist}/macs2_peak_q0.1_peaks.narrowPeak.bed $projPath/peakCalling/MACS2/${org}/${timeControl}_control/T6/${hist}/macs2_peak_q0.1_peaks.narrowPeak.bed >$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/mergedPeakFile.txt
##Step 2
awk 'BEGIN { OFS="\t" } {
print $2, $3, $4, $1;
}' "$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/mergedPeakFile.txt" > "$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/mergedPeakFile.bed"
echo "$(tail -n +2 $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/mergedPeakFile.bed)" > $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/mergedPeakFile.bed
##Step 3
mkdir -p $projPath/heatmap/${org}/${timeControl}_control/${hist}/${distance}
computeMatrix scale-regions -S $projPath/alignment/bigwig/${org}/T1/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T2/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T3/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T4/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T5/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T6/${hist}/normalized.bw \
-R $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/mergedPeakFile.bed \
--skipZeros --missingDataAsZero -o $projPath/heatmap/${org}/${timeControl}_control/${hist}/${distance}/cluster_matrix_gene.mat.gz -p 10
for cluster in ${clusterSizes[@]}; do
##Step 4
mkdir -p ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}
plotHeatmap -m $projPath/heatmap/${org}/${timeControl}_control/${hist}/${distance}/cluster_matrix_gene.mat.gz -out $projPath/heatmap/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_Histone_gene.png --kmeans ${cluster} --outFileSortedRegions ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_info.bed
done; done; done; done
example for hg38 T1_Control hist=K4me1 distance=5000 kmeans=3
To continue the different combinations we tried in the Alignment MACS2 step where we tried different combinations of no model and broad, as well as the different q values; the following is the script to run the heatmaps on all the various parameters
**Caution** This may take a long time to run. I recommend only tuning one parameter at a time (i.e remove one of the for x in xlist just set that value to one, for example replace 'for distance in ${distances[@]}; do' with distance = "5000" to try out the different q values)
##== linux command ==##
for org in ${Organism[@]}; do
for hist in ${histList[@]}; do
for distance in ${distances[@]}; do
mkdir -p $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}
for q in ${qValues[@]}; do
time mergePeaks -d ${distance} $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T2/${hist}/macs2_peak_q${q}_peaks.narrowPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T3/${hist}/macs2_peak_q${q}_peaks.narrowPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T4/${hist}/macs2_peak_q${q}_peaks.narrowPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T5/${hist}/macs2_peak_q${q}_peaks.narrowPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T6/${hist}/macs2_peak_q${q}_peaks.narrowPeak >$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_mergedPeakFile.txt
awk 'BEGIN { OFS="\t" } {
print $2, $3, $4, $1;
}' "$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_mergedPeakFile.txt" > "$$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_mergedPeakFile.bed"
echo "$(tail -n +2 $$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_mergedPeakFile.bed)" > $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_mergedPeakFile.bed
computeMatrix scale-regions -S $projPath/alignment/bigwig/${org}/T1/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T2/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T3/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T4/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T5/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T6/${hist}/normalized.bw \
-R $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_mergedPeakFile.bed \
--skipZeros --missingDataAsZero -o $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/q${q}_cluster_matrix_gene.mat.gz -p 10
# nomodel
time mergePeaks -d ${distance} $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T2/${hist}/macs2_peak_q${q}_nomodel_peaks.narrowPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T3/${hist}/macs2_peak_q${q}_nomodel_peaks.narrowPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T4/${hist}/macs2_peak_q${q}_nomodel_peaks.narrowPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T5/${hist}/macs2_peak_q${q}_nomodel_peaks.narrowPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T6/${hist}/macs2_peak_q${q}_nomodel_peaks.narrowPeak >$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_mergedPeakFile.txt
awk 'BEGIN { OFS="\t" } {
print $2, $3, $4, $1;
}' "$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_mergedPeakFile.txt" > "$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_mergedPeakFile.bed"
echo "$(tail -n +2 $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_mergedPeakFile.bed)" > $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_mergedPeakFile.bed
computeMatrix scale-regions -S $projPath/alignment/bigwig/${org}/T1/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T2/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T3/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T4/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T5/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T6/${hist}/normalized.bw \
-R $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_mergedPeakFile.bed \
--skipZeros --missingDataAsZero -o $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_cluster_matrix_gene.mat.gz -p 10
# broad
time mergePeaks -d ${distance} $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T2/${hist}/macs2_peak_q${q}_broad_peaks.broadPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T3/${hist}/macs2_peak_q${q}_broad_peaks.broadPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T4/${hist}/macs2_peak_q${q}_broad_peaks.broadPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T5/${hist}/macs2_peak_q${q}_broad_peaks.broadPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T6/${hist}/macs2_peak_q${q}_broad_peaks.broadPeak >$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_broad_mergedPeakFile.txt
awk 'BEGIN { OFS="\t" } {
print $2, $3, $4, $1;
}' "$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_broad_mergedPeakFile.txt" > "$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_broad_mergedPeakFile.bed"
echo "$(tail -n +2 $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_broad_mergedPeakFile.bed)" > $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_broad_mergedPeakFile.bed
computeMatrix scale-regions -S $projPath/alignment/bigwig/${org}/T1/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T2/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T3/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T4/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T5/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T6/${hist}/normalized.bw \
-R $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_broad_mergedPeakFile.bed \
--skipZeros --missingDataAsZero -o $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/q${q}_broad_cluster_matrix_gene.mat.gz -p 10
# broad nomodel
time mergePeaks -d ${distance} $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T2/${hist}/macs2_peak_q${q}_nomodel_broad_peaks.broadPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T3/${hist}/macs2_peak_q${q}_nomodel_broad_peaks.broadPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T4/${hist}/macs2_peak_q${q}_nomodel_broad_peaks.broadPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T5/${hist}/macs2_peak_q${q}_nomodel_broad_peaks.broadPeak $projPath/peakCalling/MACS2/${org}/parameter/${timeControl}_control/T6/${hist}/macs2_peak_q${q}_nomodel_broad_peaks.broadPeak >$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_broad_mergedPeakFile.txt
awk 'BEGIN { OFS="\t" } {
print $2, $3, $4, $1;
}' "$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_broad_mergedPeakFile.txt" > "$projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_broad_mergedPeakFile.bed"
echo "$(tail -n +2 $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_broad_mergedPeakFile.bed)" > $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_broad_mergedPeakFile.bed
computeMatrix scale-regions -S $projPath/alignment/bigwig/${org}/T1/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T2/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T3/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T4/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T5/${hist}/normalized.bw \
$projPath/alignment/bigwig/${org}/T6/${hist}/normalized.bw \
-R $projPath/Homer/mergePeaks/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_broad_mergedPeakFile.bed \
--skipZeros --missingDataAsZero -o $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_broad_cluster_matrix_gene.mat.gz -p 10
for cluster in ${clusterSizes[@]}; do
time plotHeatmap -m $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/q${q}_cluster_matrix_gene.mat.gz -out $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_q${q}_Histone_gene.png --kmeans ${cluster} --outFileSortedRegions ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_q${q}_info.bed
time plotHeatmap -m $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_cluster_matrix_gene.mat.gz -out $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_q${q}_nomodel_Histone_gene.png --kmeans ${cluster} --outFileSortedRegions ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_q${q}_nomodel_info.bed
time plotHeatmap -m $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/q${q}_broad_cluster_matrix_gene.mat.gz -out $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_q${q}_broad_Histone_gene.png --kmeans ${cluster} --outFileSortedRegions ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_q${q}_broad_info.bed
time plotHeatmap -m $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/q${q}_nomodel_broad_cluster_matrix_gene.mat.gz -out $projPath/heatmap/parameters/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_q${q}_nomodel_broad_Histone_gene.png --kmeans ${cluster} --outFileSortedRegions ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_q${q}_nomodel_broad_info.bed
done; done; done; done; done
VIII. Analyze Heatmap Cluster
VIII. Analyze Heatmap Cluster
Split up bed file into clusters
The bed file from plotHeatmap outputs information where there's a column with the cluster number. we want to separate the bed file based on the cluster column so that we have one bed file per cluster and we can analyze the clusters separately.
How you run this next code depends on the value chosen for kmeans in plotHeatmap, for example for kmeans is 3 you would set, (since I tried kmeans set to 3, 4, and 5; I would run this with cluster="3" then cluster="4" then cluster="5"
##== linux command ==##
cluster="3"
and only run up until and including clusterGroup=("3") as we would only have 3 clusters to split the bed file into. (And if kmeans=4, then cluster="4" and run up to and including clusterGroup=("6"), and so on for other kmeans values)
##== linux command ==##
clusterGroup=("1")
for org in ${Organism[@]}; do
for distance in ${distances[@]}; do
for hist in ${histList[@]}; do
awk '$13=="cluster_1"' ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_info.bed >${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_cluster${clusterGroup}_info.bed
done; done; done
clusterGroup=("2")
for org in ${Organism[@]}; do
for distance in ${distances[@]}; do
for hist in ${histList[@]}; do
awk '$13=="cluster_2"' ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_info.bed >${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_cluster${clusterGroup}_info.bed
done; done; done
clusterGroup=("3")
for org in ${Organism[@]}; do
for distance in ${distances[@]}; do
for hist in ${histList[@]}; do
awk '$13=="cluster_3"' ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_info.bed >${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_cluster${clusterGroup}_info.bed
done; done; done
## stop here if cluster=3
cluster=("4")
for org in ${Organism[@]}; do
for distance in ${distances[@]}; do
for hist in ${histList[@]}; do
awk '$13=="cluster_4"' ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_info.bed >${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_cluster${clusterGroup}_info.bed
done; done; done
## stop here if cluster=4
cluster=("5")
for org in ${Organism[@]}; do
for distance in ${distances[@]}; do
for hist in ${histList[@]}; do
awk '$13=="cluster_5"' ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_info.bed >${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_cluster${clusterGroup}_info.bed
done; done; done
## stop here if cluster=5
Cluster Analysis
Cluster Analysis
clusterGroups=("cluster1" "cluster2" "cluster3" "cluster4" "cluster5");
Gene Ontology Analysis:
Now we will analyze each cluster in the heatmaps, this is where errors regarding homer not having the mm10 genome would pop up, so make sure to follow the steps I noted earlier on downloading homer as a package if this happens.
for org in ${Organism[@]}; do
if [ "${org}" == "human" ]
then
genome="hg38"
else
genome="mm10"
fi
for distance in ${distances[@]}; do
for hist in ${histList[@]}; do
for cluster in ${clusterSizes[@]}; do
for clusterGroup in ${clusterGroups[@]}; do
#for simplicity of doing this in a for loop this checks if the cluster file exists (i.e cluster4 #wouldn't exist for kmeans=4)
if test -f ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_${clusterGroup}_info.bed;
then
mkdir ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/GO_${cluster}_${clusterGroup}/
time annotatePeaks.pl ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_${clusterGroup}_info.bed $genome -go ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/GO_${cluster}_${clusterGroup}/ >${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/GO_${cluster}_${clusterGroup}/annotatePeaks.txt
fi
done; done; done; done; done
screenshot of part of the table produced by geneOntology.html file for hg38 T1_Control hist=K4me1 distance=5000 kmeans(clusterSize)=3 clustergroup=1
Motifs:
Since I do not have write privileges outside of my personal folder, we have to use the -preparsedDir option and provide any directory that you have write access too.
ml R
ml SAMtools
ml Homer
mkdir $projPath/homer/
for org in ${Organism[@]}; do
if [ "${org}" == "human" ]
then
genome="hg38"
else
genome="mm10"
fi
for distance in ${distances[@]}; do
for hist in ${histList[@]}; do
for cluster in ${clusterSizes[@]}; do
for clusterGroup in ${clusterGroups[@]}; do
if test -f ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_${clusterGroup}_info.bed;
then
mkdir ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/Motifs_${cluster}_${clusterGroup}/
time findMotifsGenome.pl ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/${cluster}_${clusterGroup}_info.bed $genome ${projPath}/clusterInfo/${org}/${timeControl}_control/${hist}/${distance}/Motifs_${cluster}_${clusterGroup}/ -size given -preparsedDir $projPath/Homer/
fi
done; done; done; done; done
screenshot of part of the table produced by knownResults.html file for hg38 T1_Control hist=K4me1 distance=5000 kmeans(clusterSize)=3 clustergroup=1
